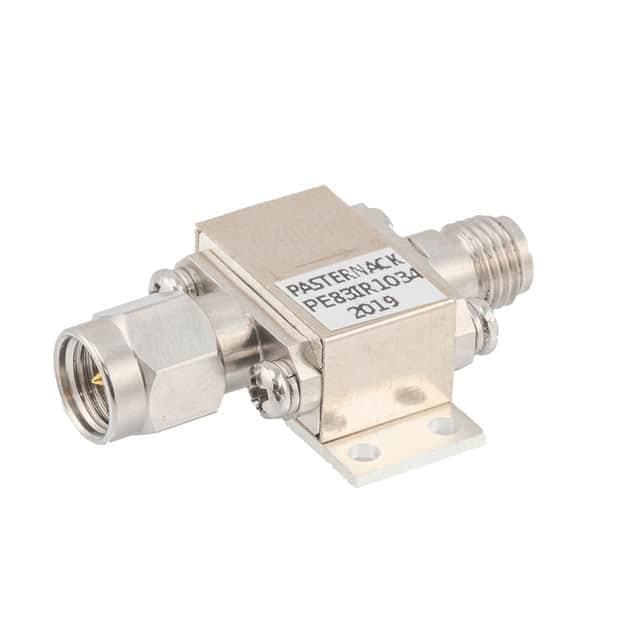

PE83IR1034 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN9 sourced attributes1 source document

Pasternack · exact orderable part

PE83IR1034

18-26.5GHZ ISLTR 10W 2.92MM(M-F)

Connector Type
SMA-FEMALE, SMA-MALE
Frequency
18 GHz ~ 26.5 GHz
Insertion Loss
1.7dB (Max)
Isolation
14dB (Min)
Product Status
Active
Type
Isolator
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule, SMA Connectors
PackingBag

Technical parameters

Technical specifications

9 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeSMA-FEMALE, SMA-MALE [1]
Frequency18 GHz ~ 26.5 GHz [1]
Insertion Loss1.7dB (Max) [1]
Isolation14dB (Min) [1]
MfrPasternack [1]
Product StatusActive [1]
TypeIsolator [1]
VSWR1.7 [1]
Package / CaseModule, SMA Connectors [1]
Specification references[1]Pasternack PE83IR1034 vendor product record ↗
