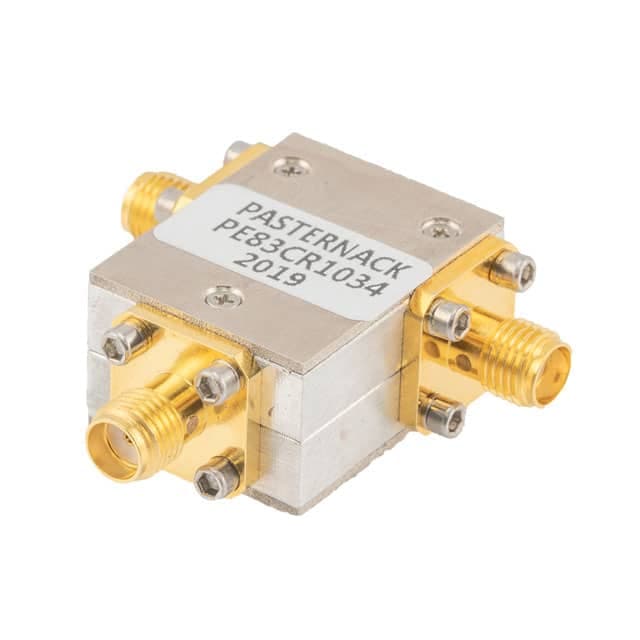

PE83CR1034 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN9 sourced attributes1 source document

Pasternack · exact orderable part

PE83CR1034

CIR 4-8GHZ SMA 80W

Connector Type
SMA-FEMALE
Frequency
4 GHz ~ 8 GHz
Insertion Loss
0.6dB (Max)
Isolation
17dB (Min)
Product Status
Active
Type
Circulator
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule, SMA Connectors
PackingBag

Technical parameters

Technical specifications

9 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeSMA-FEMALE [1]
Frequency4 GHz ~ 8 GHz [1]
Insertion Loss0.6dB (Max) [1]
Isolation17dB (Min) [1]
MfrPasternack [1]
Product StatusActive [1]
TypeCirculator [1]
VSWR1.4 [1]
Package / CaseModule, SMA Connectors [1]
Specification references[1]Pasternack PE83CR1034 vendor product record ↗
