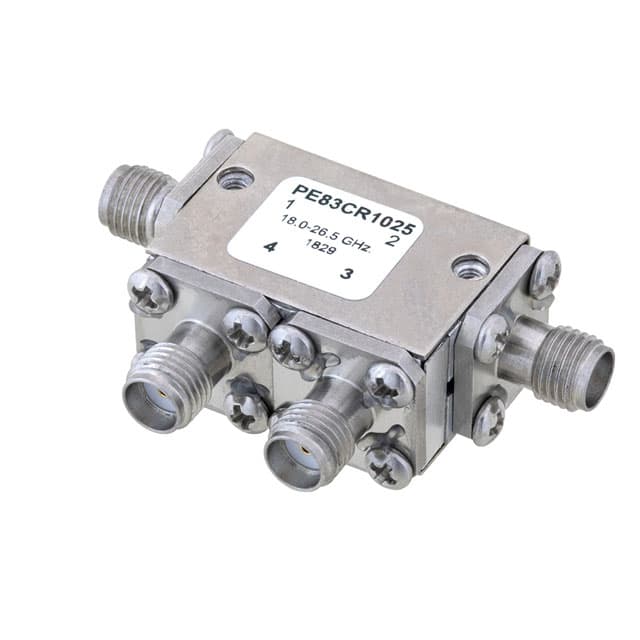

PE83CR1025 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN9 sourced attributes1 source document

Pasternack · exact orderable part

PE83CR1025

DUAL JUNC CIR 18-26.5GHZ SMA 5W

Connector Type
SMA-FEMALE
Frequency
18 GHz ~ 26.5 GHz
Insertion Loss
1.2dB (Max)
Isolation
34dB (Min)
Manufacturer
Pasternack
Part Status
Active
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule, SMA Connectors
PackingBag

Technical parameters

Technical specifications

9 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeSMA-FEMALE [1]
Frequency18 GHz ~ 26.5 GHz [1]
Insertion Loss1.2dB (Max) [1]
Isolation34dB (Min) [1]
ManufacturerPasternack [1]
Part StatusActive [1]
TypeCirculator [1]
VSWR1.4 [1]
Package / CaseModule, SMA Connectors [1]
Specification references[1]Pasternack PE83CR1025 vendor product record ↗
