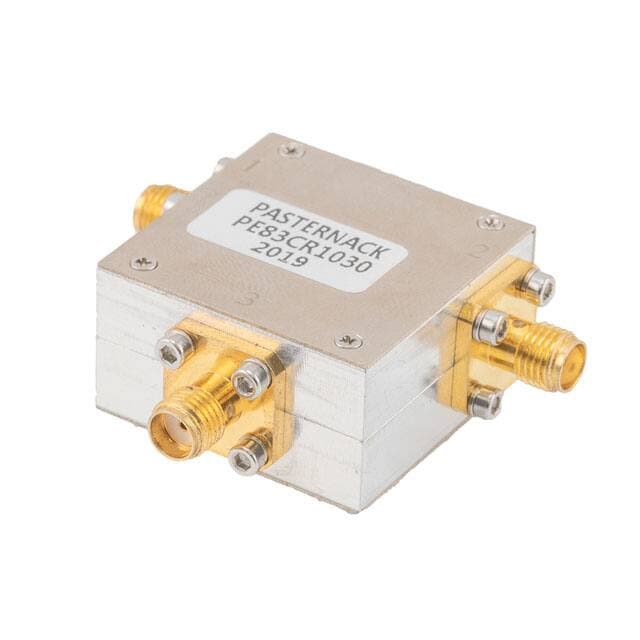

PE83CR1030 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN9 sourced attributes1 source document

Pasternack · exact orderable part

PE83CR1030

CIR 2-4GHZ SMA 100W

Connector Type
SMA-FEMALE
Frequency
2 GHz ~ 4 GHz
Insertion Loss
0.65dB (Max)
Isolation
18dB (Min)
Product Status
Active
Type
Circulator
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule, SMA Connectors
PackingBag

Technical parameters

Technical specifications

9 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeSMA-FEMALE [1]
Frequency2 GHz ~ 4 GHz [1]
Insertion Loss0.65dB (Max) [1]
Isolation18dB (Min) [1]
MfrPasternack [1]
Product StatusActive [1]
TypeCirculator [1]
VSWR1.35 [1]
Package / CaseModule, SMA Connectors [1]
Specification references[1]Pasternack PE83CR1030 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerPasternackView brand page →CategoryRF Circulators and IsolatorsView category page →

Related exact parts

Other published parts

Browse exact MPNs and compare their specifications. These links do not imply compatibility or interchangeability.

PE83CR1025PE83CR1026PE83CR1027PE83CR1034PE83IR1012PE83IR1025PE83IR1026PE83IR1028PE83IR1029
