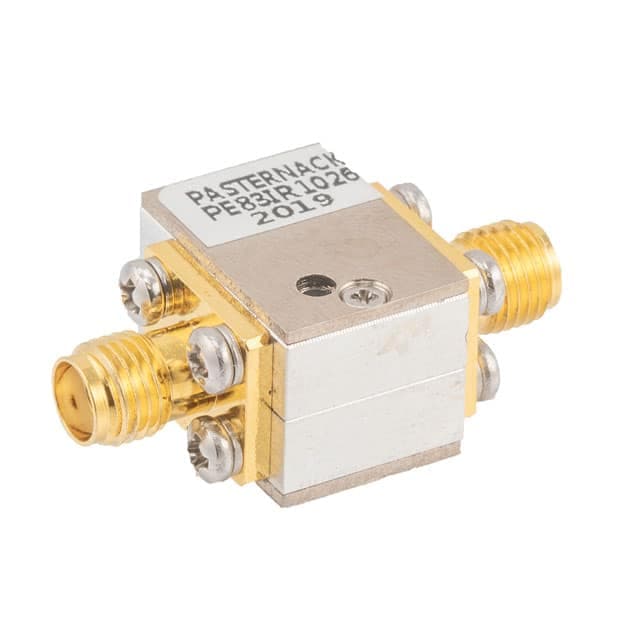

PE83IR1026 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN9 sourced attributes1 source document

Pasternack · exact orderable part

PE83IR1026

8-12GHZ ISLTR 30W SMA

Connector Type
SMA-FEMALE
Frequency
8 GHz ~ 12 GHz
Insertion Loss
0.5dB (Max)
Isolation
20dB (Min)
Product Status
Active
Type
Isolator
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule, SMA Connectors
PackingBag

Technical parameters

Technical specifications

9 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeSMA-FEMALE [1]
Frequency8 GHz ~ 12 GHz [1]
Insertion Loss0.5dB (Max) [1]
Isolation20dB (Min) [1]
MfrPasternack [1]
Product StatusActive [1]
TypeIsolator [1]
VSWR1.35 [1]
Package / CaseModule, SMA Connectors [1]
Specification references[1]Pasternack PE83IR1026 vendor product record ↗
