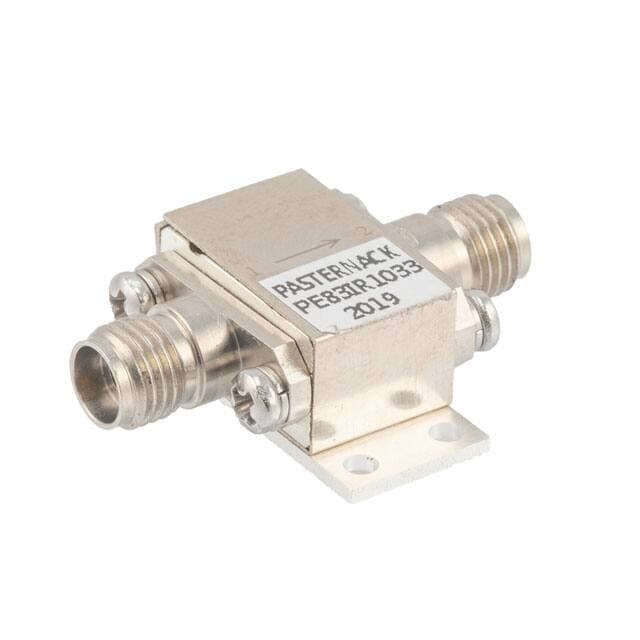

PE83IR1033 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN7 sourced attributes1 source document

Pasternack · exact orderable part

PE83IR1033

18-26.5GHZ ISLTR 10W 2.92MM

Frequency
18 GHz ~ 26.5 GHz
Insertion Loss
1.7dB (Max)
Isolation
14dB (Min)
Mfr
Pasternack
Product Status
Active
Type
Isolator
Original manufacturerCommercial terms confirmed per lot
ManufacturerPasternack
Package / caseModule
Mounting typeunknown
PackingBag

Technical parameters

Technical specifications

7 normalized values · 1 validated source

Report a data issue
ParameterValue
Frequency18 GHz ~ 26.5 GHz [1]
Insertion Loss1.7dB (Max) [1]
Isolation14dB (Min) [1]
MfrPasternack [1]
Product StatusActive [1]
TypeIsolator [1]
VSWR1.7 [1]
Specification references[1]Pasternack PE83IR1033 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerPasternackView brand page →CategoryRF Circulators and IsolatorsView category page →

Related exact parts

Other published variants

PE83CR1025PE83CR1026PE83CR1027PE83CR1030PE83CR1034PE83IR1012PE83IR1025PE83IR1026PE83IR1028
