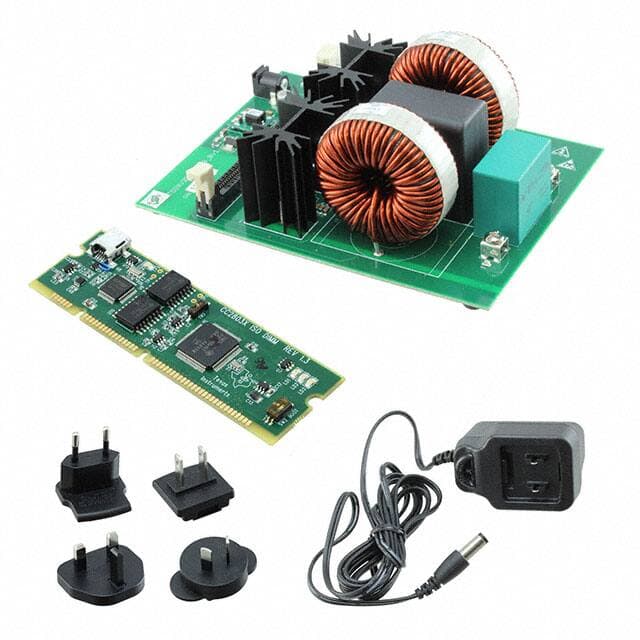

TDINV3500P100-KIT representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN11 sourced attributes1 source document

Transphorm · exact orderable part

TDINV3500P100-KIT

3.5KW INVERTER EVAL KIT

Base Product Number
TDINV3500
Board Type
Fully Populated
Frequency - Switching
100kHz
Main Purpose
DC/AC Converter
Mfr
Transphorm
Power - Output
3.5 kW
Original manufacturerCommercial terms confirmed per lot
ManufacturerTransphorm
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberTDINV3500 [1]
Board TypeFully Populated [1]
Frequency - Switching100kHz [1]
Main PurposeDC/AC Converter [1]
MfrTransphorm [1]
Power - Output3.5 kW [1]
Outputs and Type1, Isolated [1]
Product StatusObsolete [1]
Supplied ContentsBoard(s) [1]
Utilized IC / PartTP90H180PS [1]
Voltage - Input750V [1]
Specification references[1]Transphorm TDINV3500P100-KIT vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerTransphormView brand page →CategoryEvaluation Boards - DC/DC & AC/DC (Off-Line) SMPSView category page →

Related exact parts

Other published variants

TDHB-65H070L-DCTDHBG1200DC100-KITTDHBG2500P100-KITTDINV1000P100-KITTDINV3000W050-KITTDTTP2500B066B-KITTDTTP2500P100-KITTDTTP4000W066B-KITTDTTP4000W066C-KIT
