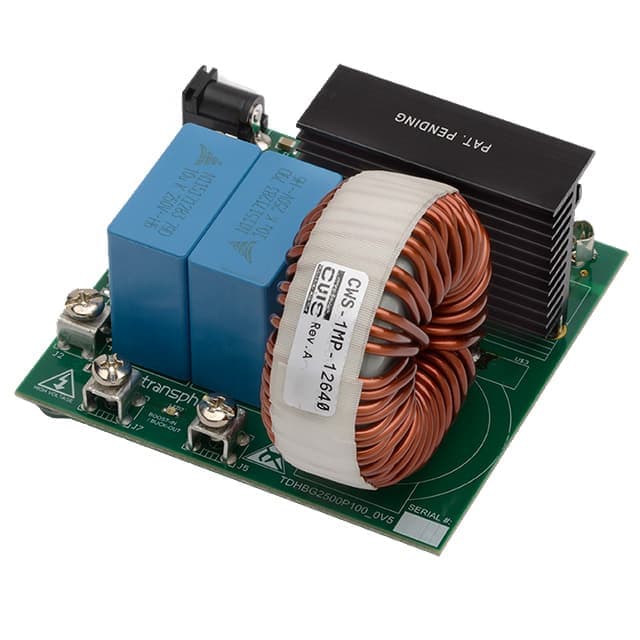

TDHBG2500P100-KIT representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN11 sourced attributes1 source document

Transphorm · exact orderable part

TDHBG2500P100-KIT

2.5KW HB, BUCK OR BOOST EVAL KIT

Base Product Number
TDHBG2500
Board Type
Fully Populated
Current - Output
16.5A
Main Purpose
DC/DC Converter
Power - Output
2.5 kW
Outputs and Type
1, Non-Isolated
Original manufacturerCommercial terms confirmed per lot
ManufacturerTransphorm
PackingBulk

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberTDHBG2500 [1]
Board TypeFully Populated [1]
Current - Output16.5A [1]
Main PurposeDC/DC Converter [1]
MfrTransphorm [1]
Power - Output2.5 kW [1]
Outputs and Type1, Non-Isolated [1]
Product StatusObsolete [1]
Regulator TopologyBoost, Buck, Half-Bridge [1]
Supplied ContentsBoard(s), Power Supply [1]
Utilized IC / PartTPH3212PS [1]
Specification references[1]Transphorm TDHBG2500P100-KIT vendor product record ↗
