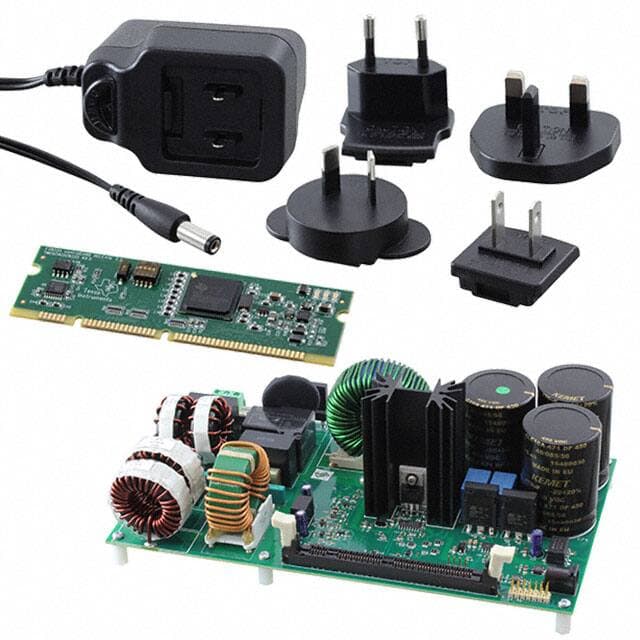

TDTTP2500P100-KIT representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN12 sourced attributes1 source document

Transphorm · exact orderable part

TDTTP2500P100-KIT

2.5KW TOTEM-POLE PFC EVAL KIT

Base Product Number: TDTTP2500
Board Type: Fully Populated
Frequency - Switching: 100kHz
Main Purpose: AC/DC, Primary Side and PFC
Mfr: Transphorm
Power - Output: 2.5 kW

Original manufacturerCommercial terms confirmed per lot

ManufacturerTransphorm

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

12 normalized values · 1 validated source

Report a data issue

TDTTP2500P100-KIT technical parameters
Parameter	Value
Base Product Number	TDTTP2500 [1]
Board Type	Fully Populated [1]
Frequency - Switching	100kHz [1]
Main Purpose	AC/DC, Primary Side and PFC [1]
Mfr	Transphorm [1]
Power - Output	2.5 kW [1]
Outputs and Type	1, Non-Isolated [1]
Product Status	Obsolete [1]
Supplied Contents	Board(s) [1]
Utilized IC / Part	TPH3212PS [1]
Voltage - Input	85 ~ 265 VAC [1]
Voltage - Output	390V [1]

Specification references[1]Transphorm TDTTP2500P100-KIT vendor product record ↗
