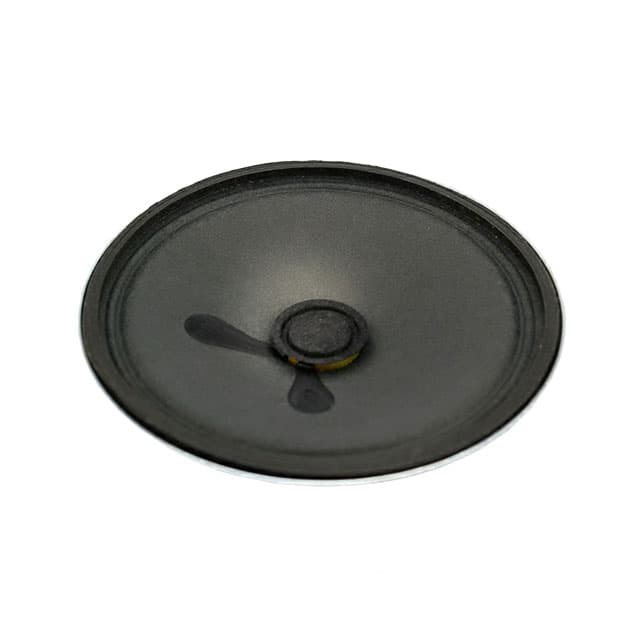

SP-7721 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

Soberton Inc. · exact orderable part

SP-7721

SPEAKER 8OHM 1W TOP PORT 92DB

Efficiency - Testing: 100mW/100mm
Efficiency - Type: Sound Pressure Level (SPL)
Efficiency - dBA: 92.00
Mfr: Soberton Inc.
Frequency - Self Resonant: 400Hz
Frequency Range: 400 Hz ~ 4 kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerSoberton Inc.

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue

SP-7721 technical parameters
Parameter	Value
Efficiency - Testing	100mW/100mm [1]
Efficiency - Type	Sound Pressure Level (SPL) [1]
Efficiency - dBA	92.00 [1]
Mfr	Soberton Inc. [1]
Frequency - Self Resonant	400Hz [1]
Frequency Range	400 Hz ~ 4 kHz [1]
Height - Seated (Max)	0.866" (22.00mm) [1]
Impedance	8 Ohms [1]
Product Status	Active [1]
Material - Cone	Paper [1]
Material - Magnet	Nd-Fe-B [1]
Port Location	Top [1]
Power - Max	2 W [1]
Power - Rated	1 W [1]
Series	SP Micro Speaker [1]
Shape	Round [1]
Size / Dimension	3.032" Dia (77.00mm) [1]
Technology	Magnetic [1]
Termination	Solder Eyelet(s) [1]
Type	General Purpose [1]

Specification references[1]Soberton Inc. SP-7721 vendor product record ↗
