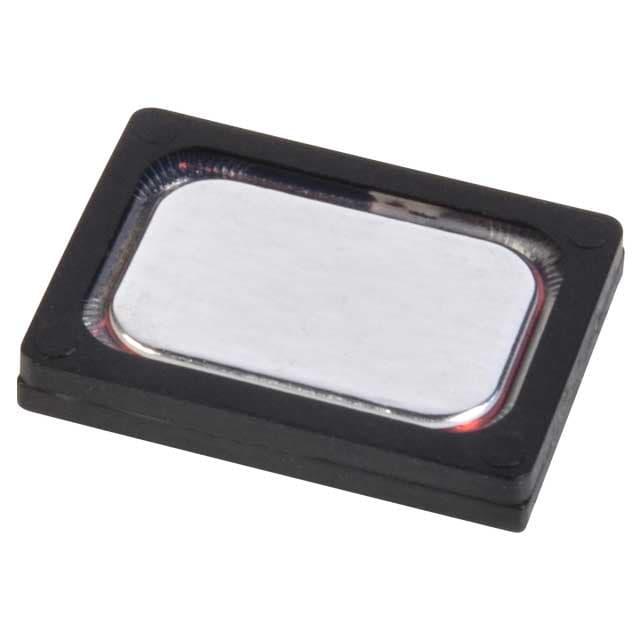

CDS-15118B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

CUI Devices · exact orderable part

CDS-15118B

SPEAKER 8OHM 700MW TOP PORT 86DB

Efficiency - Testing
500mW/100mm
Efficiency - Type
Sound Pressure Level (SPL)
Efficiency - dBA
86.00
Mfr
CUI Devices
Frequency - Self Resonant
500Hz
Frequency Range
400 Hz ~ 20 kHz
Original manufacturerCommercial terms confirmed per lot
ManufacturerCUI Devices
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
Efficiency - Testing500mW/100mm [1]
Efficiency - TypeSound Pressure Level (SPL) [1]
Efficiency - dBA86.00 [1]
MfrCUI Devices [1]
Frequency - Self Resonant500Hz [1]
Frequency Range400 Hz ~ 20 kHz [1]
Height - Seated (Max)0.118" (3.00mm) [1]
Impedance8 Ohms [1]
Product StatusObsolete [1]
Material - ConePolyester, Polyethylene Terephthalate (PET) [1]
Material - MagnetNd-Fe-B [1]
Port LocationTop [1]
Power - Max1 W [1]
Power - Rated700 mW [1]
SeriesCDS [1]
ShapeRectangular [1]
Size / Dimension0.591" L x 0.433" W (15.00mm x 11.00mm) [1]
TechnologyMagnetic [1]
TerminationSolder Pads [1]
TypeGeneral Purpose [1]
Specification references[1]CUI Devices CDS-15118B vendor product record ↗
