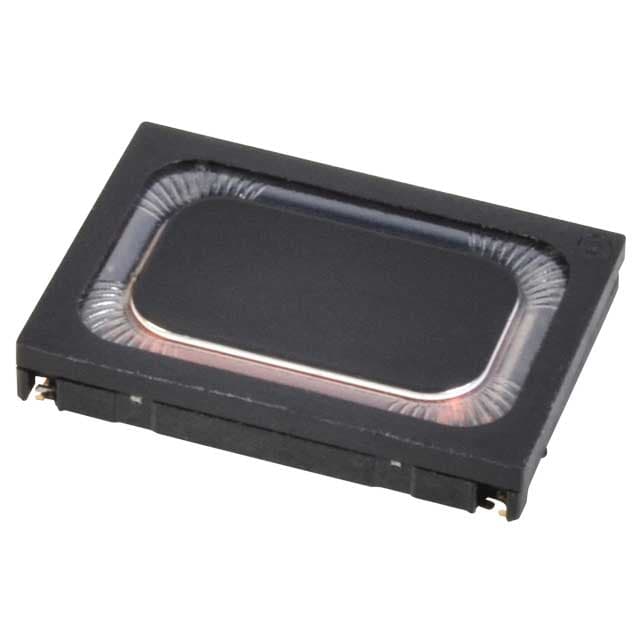

CDS-18138A representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

CUI Devices · exact orderable part

CDS-18138A

SPEAKER 8OHM 700MW TOP PORT 89DB

Efficiency - Testing
700mW/100mm
Efficiency - Type
Sound Pressure Level (SPL)
Efficiency - dBA
89.00
Frequency - Self Resonant
375Hz
Frequency Range
300 Hz ~ 20 kHz
Height - Seated (Max)
0.098" (2.50mm)
Original manufacturerCommercial terms confirmed per lot
ManufacturerCUI Devices
PackingBox

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
Efficiency - Testing700mW/100mm [1]
Efficiency - TypeSound Pressure Level (SPL) [1]
Efficiency - dBA89.00 [1]
MfrCUI Devices [1]
Frequency - Self Resonant375Hz [1]
Frequency Range300 Hz ~ 20 kHz [1]
Height - Seated (Max)0.098" (2.50mm) [1]
Impedance8 Ohms [1]
Product StatusObsolete [1]
Material - ConePolyester, Polyethylene Terephthalate (PET) [1]
Material - MagnetNd-Fe-B [1]
Port LocationTop [1]
Power - Max1 W [1]
Power - Rated700 mW [1]
SeriesCDS [1]
ShapeRectangular [1]
Size / Dimension0.709" L x 0.512" W (18.00mm x 13.00mm) [1]
TechnologyMagnetic [1]
TerminationSpring Type [1]
TypeGeneral Purpose [1]
Specification references[1]CUI Devices CDS-18138A vendor product record ↗
