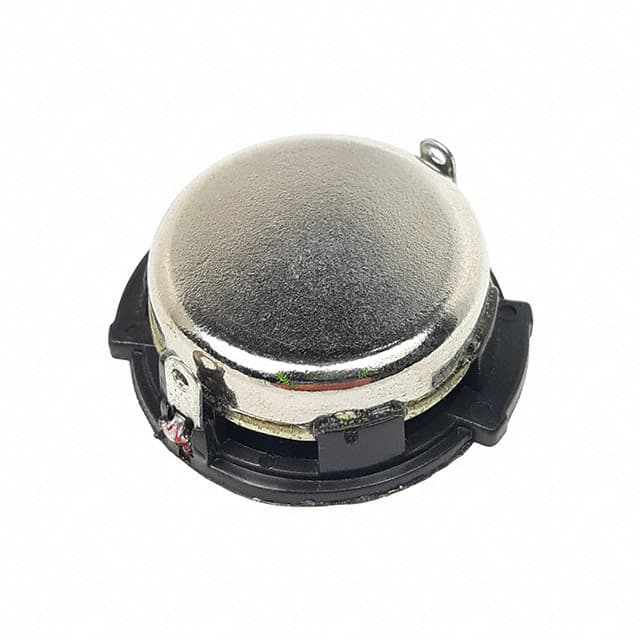

SP-3114Y representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

Soberton Inc. · exact orderable part

SP-3114Y

SPEAKER 8OHM 2W TOP PORT 82DB

Efficiency - Testing
1W/500mm
Efficiency - Type
Sound Pressure Level (SPL)
Efficiency - dBA
82.00
Frequency - Self Resonant
270Hz
Frequency Range
270 Hz ~ 20 kHz
Height - Seated (Max)
0.571" (14.50mm)
Original manufacturerCommercial terms confirmed per lot
ManufacturerSoberton Inc.
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
Efficiency - Testing1W/500mm [1]
Efficiency - TypeSound Pressure Level (SPL) [1]
Efficiency - dBA82.00 [1]
Frequency - Self Resonant270Hz [1]
Frequency Range270 Hz ~ 20 kHz [1]
Height - Seated (Max)0.571" (14.50mm) [1]
Impedance8 Ohms [1]
ManufacturerSoberton Inc. [1]
Operating Temperature-20°C ~ 60°C [1]
Material - MagnetNd-Fe-B [1]
Part StatusActive [1]
Port LocationTop [1]
Power - Max3 W [1]
Power - Rated2 W [1]
SeriesSP Micro Speaker [1]
ShapeRound [1]
Size / Dimension1.220" Dia (31.00mm) [1]
TechnologyMagnetic [1]
TerminationQuick Connect [1]
TypeGeneral Purpose [1]
Specification references[1]Soberton Inc. SP-3114Y vendor product record ↗
