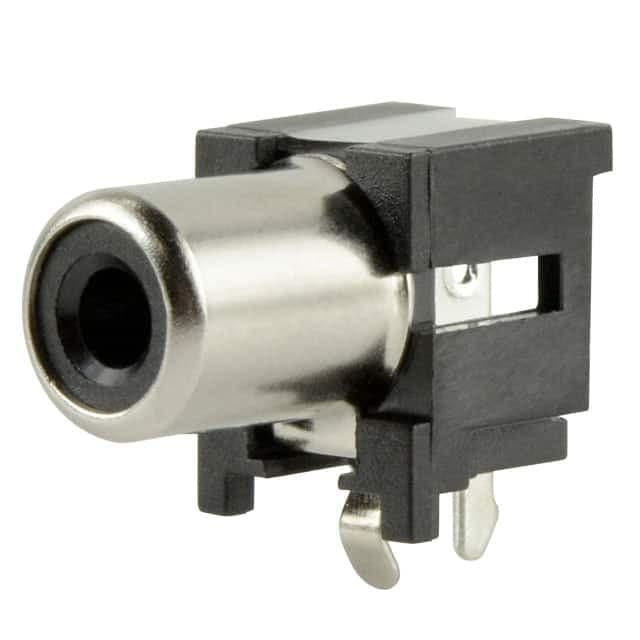

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes2 source documents

CUI Devices · exact orderable part

RCJ-412323

Name: RCJ-412323
Brand: CUI Devices

CONN RCA JACK QUAD 2X2 RED/WHT

Original manufacturerCommercial terms confirmed per lot

ManufacturerCUI Devices

Mounting typeThrough Hole, Right Angle

PackingBox

Technical parameters

Technical specifications

18 normalized values · 2 validated sources

RCJ-412323 technical parameters
Parameter	Value
Actual Diameter	0.142" (3.60mm ID), 0.327" (8.30mm OD) [2]
Body Color	Silver, Black [2]
Connector Type	Phono (RCA) Jack [2]
Body Material	Brass [2]
Contact Material - Plating	Silver [2]
Gender	Female [2]
Features	Board Lock [2]
RoHS (DigiKey record)	ROHS3 Compliant [2]
Insulation Color	Red, White [2]
Industry Recognized Mating Diameter	3.20mm ID, 9.00mm OD (RCA) [2]
Internal Switch(s)	Does Not Contain Switch [2]
Mfr	CUI Devices [2]
Mounting Type	Through Hole, Right Angle [2]
Number of Positions/Contacts	2 Sets of 2 Conductors, 6 Contacts [2]
Product Status	Active [2]
Shielding	Unshielded [2]
Signal Lines	Mono [2]
Termination	Solder [2]
