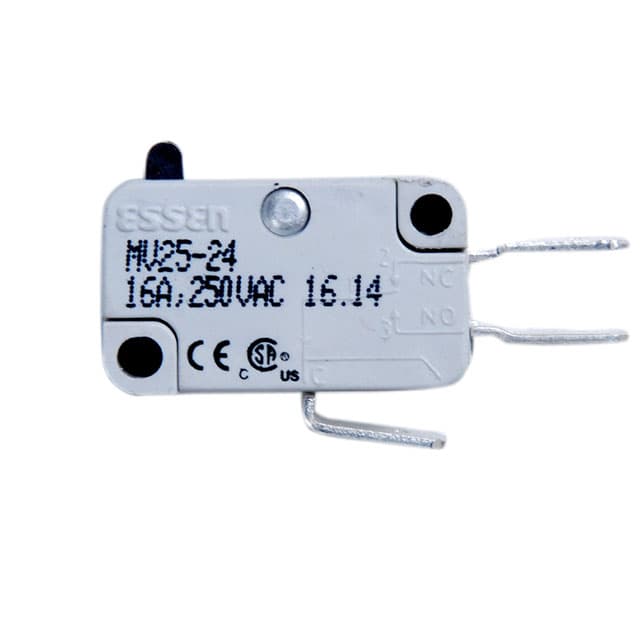

MV25-24 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN14 sourced attributes2 source documents

Essen Deinki · exact orderable part

MV25-24

SWITCH MICRO V3 BUTTON 6.3X0.8MM

Actuator Type
Round (Pin Plunger)
Differential Travel
0.016" (0.4mm)
Circuit
SPDT
Overtravel
0.039" (1.0mm)
Pretravel
0.047" (1.2mm)
Operating Force
400gf
Original manufacturerCommercial terms confirmed per lot
ManufacturerEssen Deinki
Mounting typeChassis Mount
PackingBulk

Technical parameters

Technical specifications

14 normalized values · 2 validated sources

Report a data issue
ParameterValue
Actuator TypeRound (Pin Plunger) [2]
Differential Travel0.016" (0.4mm) [2]
CircuitSPDT [2]
Overtravel0.039" (1.0mm) [2]
MfrEssen Deinki [2]
Pretravel0.047" (1.2mm) [2]
Operating Force400gf [2]
Mounting TypeChassis Mount [2]
Operating Position0.579" (14.7mm) [2]
Product StatusActive [2]
SeriesMV25 [2]
Termination StyleQuick Connect - 0.250" (6.3mm) [2]
Release Force80gf [2]
Switch FunctionOn-Mom [2]
Specification references[1]MV25-24 delivered document ↗[2]Essen Deinki MV25-24 vendor product record ↗
