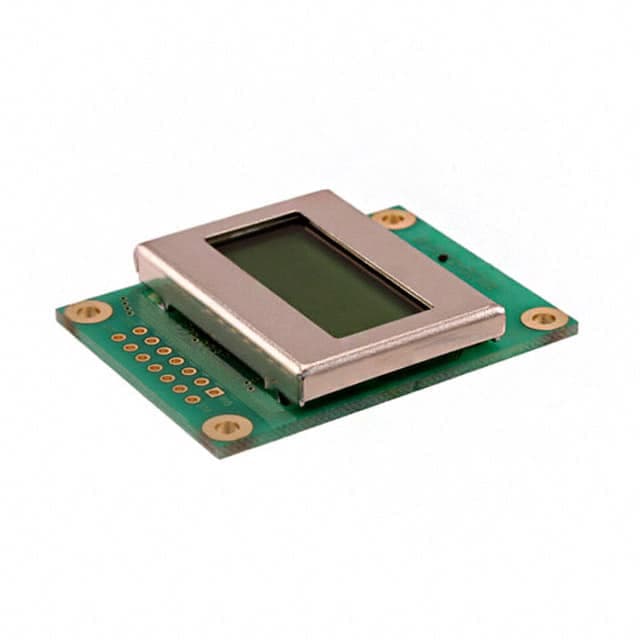

MDLS82603-LV-G representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Varitronix · exact orderable part

MDLS82603-LV-G

LCD MOD 16 DIG 8 X 2 REFLECTIVE

Backlight: Without Backlight
Background Color: Green
Base Product Number: MDLS82603
Character Format: 5 x 8 Dots
Character Size: 3.39mm H x 2.10mm W
Display Format: 8 x 2

Original manufacturerCommercial terms confirmed per lot

ManufacturerVaritronix

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

MDLS82603-LV-G technical parameters
Parameter	Value
Backlight	Without Backlight [1]
Background Color	Green [1]
Base Product Number	MDLS82603 [1]
Character Format	5 x 8 Dots [1]
Character Size	3.39mm H x 2.10mm W [1]
Display Format	8 x 2 [1]
Dot Size	0.38mm W x 0.38mm H [1]
Display Mode	Reflective [1]
Interface	Parallel [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Varitronix [1]
Number of Characters	16 [1]
Operating Temperature	0°C~50°C [1]
Outline L x W x H	33.70mm x 44.40mm x 10.00mm [1]
Product Status	Active [1]
Series	MDL(S)-82603 [1]
Viewing Area	26.50mm L x 12.20mm W [1]
Voltage - Supply	4.75V ~ 5.25V [1]

Specification references[1]Varitronix MDLS82603-LV-G vendor product record ↗
