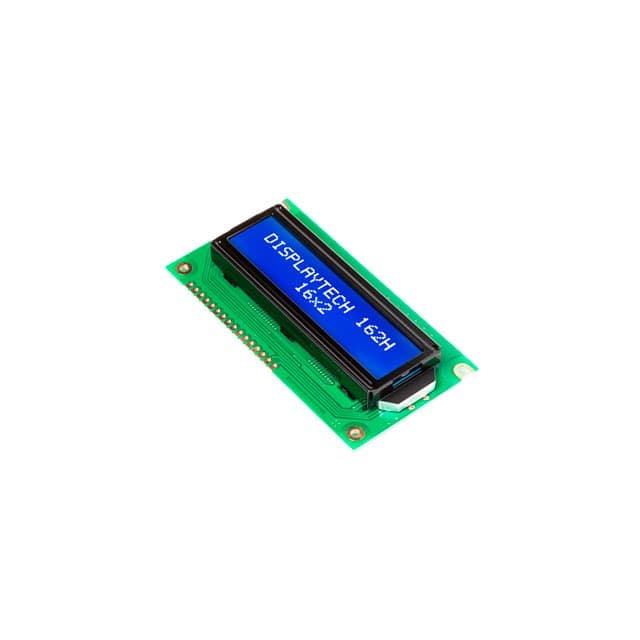

162H CC BC-3LP representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes1 source document

Displaytech · exact orderable part

162H CC BC-3LP

CHARACTER MODULE

Backlight: LED - White
Character Format: 5 x 8 Dots
Character Size: 5.55mm H x 2.95mm W
Display Format: 16 x 2
Dot Size: 0.55mm W x 0.65mm H
Display Mode: Transmissive

Original manufacturerCommercial terms confirmed per lot

ManufacturerDisplaytech

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

162H CC BC-3LP technical parameters
Parameter	Value
Backlight	LED - White [1]
Character Format	5 x 8 Dots [1]
Character Size	5.55mm H x 2.95mm W [1]
Display Format	16 x 2 [1]
Dot Size	0.55mm W x 0.65mm H [1]
Display Mode	Transmissive [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Displaytech [1]
Number of Characters	16 [1]
Operating Temperature	0°C~50°C [1]
Outline L x W x H	84.00mm x 44.00mm x 13.20mm [1]
Product Status	Active [1]
Viewing Area	66.00mm L x 16.00mm W [1]
Voltage - Supply	4.5V ~ 5.5V [1]

Specification references[1]Displaytech 162H CC BC-3LP vendor product record ↗
