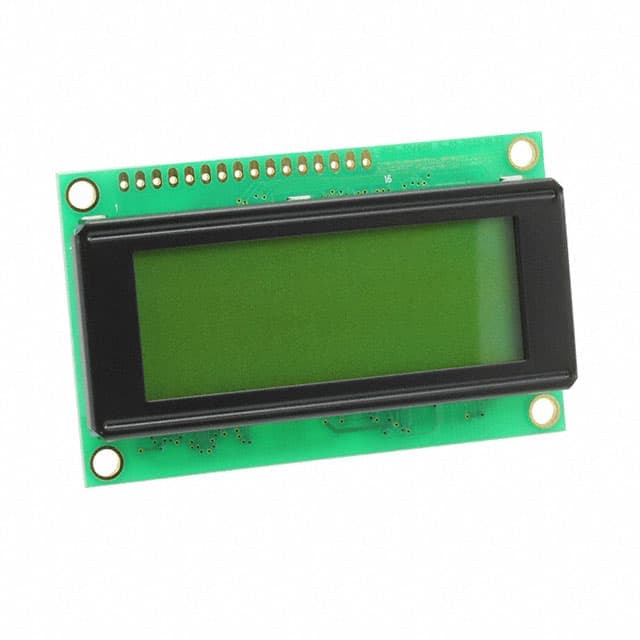

MDLS20464BD-101 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Varitronix · exact orderable part

MDLS20464BD-101

LCD MOD 80DIG 20X4 TRANS YLW/GRN

Backlight: LED - Yellow/Green
Background Color: Green
Base Product Number: MDLS20464
Character Format: 5 x 8 Dots
Character Size: 4.03mm H x 2.30mm W
Display Format: 20 x 4

Original manufacturerCommercial terms confirmed per lot

ManufacturerVaritronix

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

MDLS20464BD-101 technical parameters
Parameter	Value
Backlight	LED - Yellow/Green [1]
Background Color	Green [1]
Base Product Number	MDLS20464 [1]
Character Format	5 x 8 Dots [1]
Character Size	4.03mm H x 2.30mm W [1]
Display Format	20 x 4 [1]
Dot Size	0.50mm W x 0.50mm H [1]
Display Mode	Transflective [1]
Interface	Parallel [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Varitronix [1]
Number of Characters	80 [1]
Operating Temperature	-5°C~50°C [1]
Outline L x W x H	77.00mm x 47.00mm x 13.00mm [1]
Product Status	Active [1]
Series	MDL(S)-20464 [1]
Viewing Area	60.00mm L x 22.00mm W [1]
Voltage - Supply	4.75V ~ 5.25V [1]

Specification references[1]Varitronix MDLS20464BD-101 vendor product record ↗
