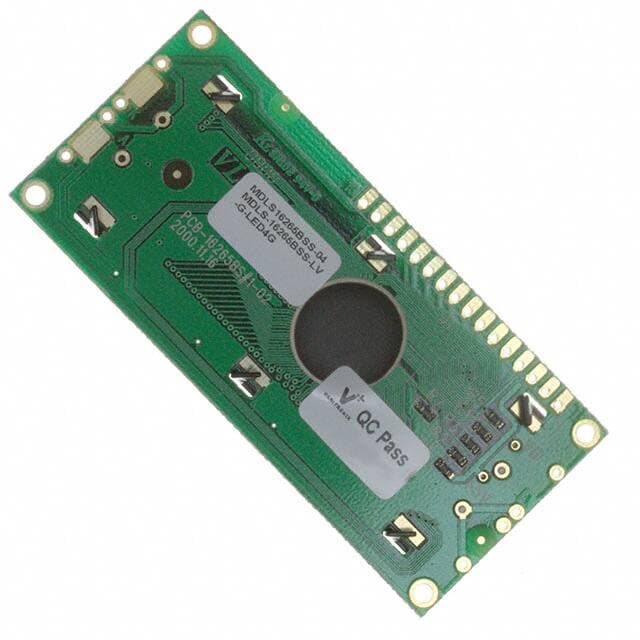

MDLS-16265B-SS-LV-G-LED04G representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Varitronix · exact orderable part

MDLS-16265B-SS-LV-G-LED04G

LCD MOD 32DIG 16X2 TRANSFLCT GRN

Backlight: LED - Green
Character Format: 5 x 8 Dots
Character Size: 5.55mm H x 2.95mm W
Display Format: 16 x 2
Dot Size: 0.55mm W x 0.65mm H
Display Mode: Transflective

Original manufacturerCommercial terms confirmed per lot

ManufacturerVaritronix

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

MDLS-16265B-SS-LV-G-LED04G technical parameters
Parameter	Value
Backlight	LED - Green [1]
Character Format	5 x 8 Dots [1]
Character Size	5.55mm H x 2.95mm W [1]
Display Format	16 x 2 [1]
Dot Size	0.55mm W x 0.65mm H [1]
Display Mode	Transflective [1]
Interface	Parallel [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Varitronix [1]
Number of Characters	32 [1]
Operating Temperature	-5°C~50°C [1]
Outline L x W x H	80.00mm x 36.00mm x 9.80mm [1]
Product Status	Obsolete [1]
Series	MDL(S)-16265B [1]
Viewing Area	61.00mm L x 15.80mm W [1]
Voltage - Supply	5V [1]

Specification references[1]Varitronix MDLS-16265B-SS-LV-G-LED04G vendor product record ↗
