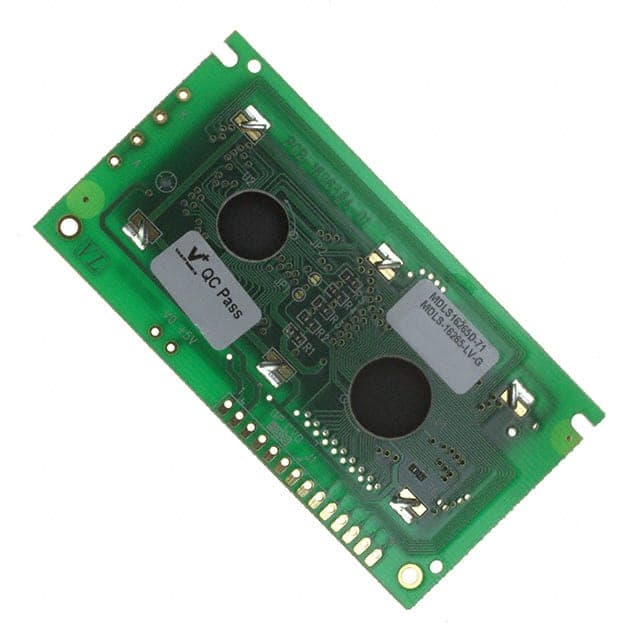

MDLS-16265-SS-LV-G representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN16 sourced attributes1 source document

Varitronix · exact orderable part

MDLS-16265-SS-LV-G

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Backlight
Without Backlight
Character Format
5 x 8 Dots
Character Size
5.55mm H x 2.95mm W
Display Format
16 x 2
Dot Size
0.55mm W x 0.65mm H
Display Mode
Reflective
Original manufacturerCommercial terms confirmed per lot
ManufacturerVaritronix
Mounting typeunknown

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue
ParameterValue
BacklightWithout Backlight [1]
Character Format5 x 8 Dots [1]
Character Size5.55mm H x 2.95mm W [1]
Display Format16 x 2 [1]
Dot Size0.55mm W x 0.65mm H [1]
Display ModeReflective [1]
InterfaceParallel [1]
Display TypeSTN - Super-Twisted Nematic [1]
MfrVaritronix [1]
Number of Characters32 [1]
Operating Temperature-5°C~50°C [1]
Outline L x W x H84.00mm x 44.00mm x 6.60mm [1]
Product StatusObsolete [1]
SeriesMDL(S)-16265 [1]
Viewing Area61.00mm L x 15.80mm W [1]
Voltage - Supply5V [1]
Specification references[1]Varitronix MDLS-16265-SS-LV-G vendor product record ↗
