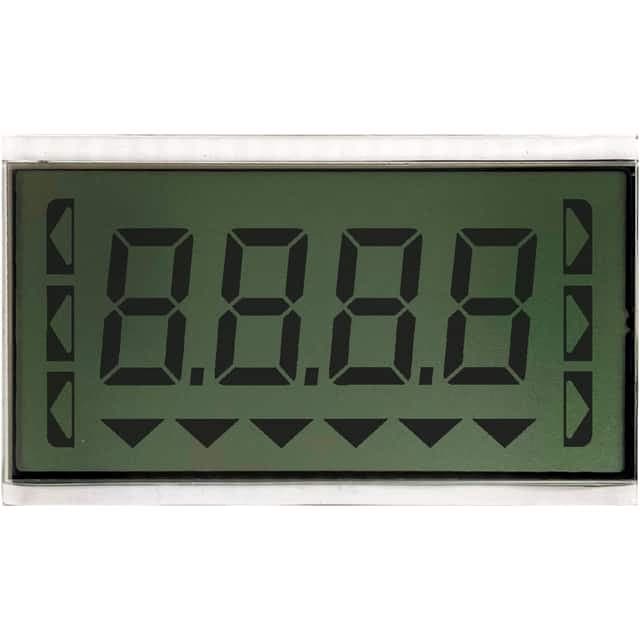

MC4DIG+ICON12W-TPT representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Midas Displays · exact orderable part

MC4DIG+ICON12W-TPT

4 DIGIT SEGMENT LCD GLASS

Backlight: LED - White
Background Color: White
Character Format: 1 x 2 Segments
Character Size: 15.80mm H x 8.30mm W
Display Format: 4 x 1
Dot Size: 1.90mm W x 8.30mm H

Original manufacturerCommercial terms confirmed per lot

ManufacturerMidas Displays

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

MC4DIG+ICON12W-TPT technical parameters
Parameter	Value
Backlight	LED - White [1]
Background Color	White [1]
Character Format	1 x 2 Segments [1]
Character Size	15.80mm H x 8.30mm W [1]
Display Format	4 x 1 [1]
Dot Size	1.90mm W x 8.30mm H [1]
Display Mode	Transflective [1]
Interface	Parallel [1]
Display Type	TN - Twisted Nematic [1]
Mfr	Midas Displays [1]
Number of Characters	4 [1]
Operating Temperature	-20°C~70°C [1]
Outline L x W x H	61.00mm x 36.00mm x 2.80mm [1]
Product Status	Active [1]
Series	MC4DIG [1]
Viewing Area	58.00mm L x 28.00mm W [1]
Voltage - Supply	5V [1]
Text Color	Black [1]

Specification references[1]Midas Displays MC4DIG+ICON12W-TPT vendor product record ↗
