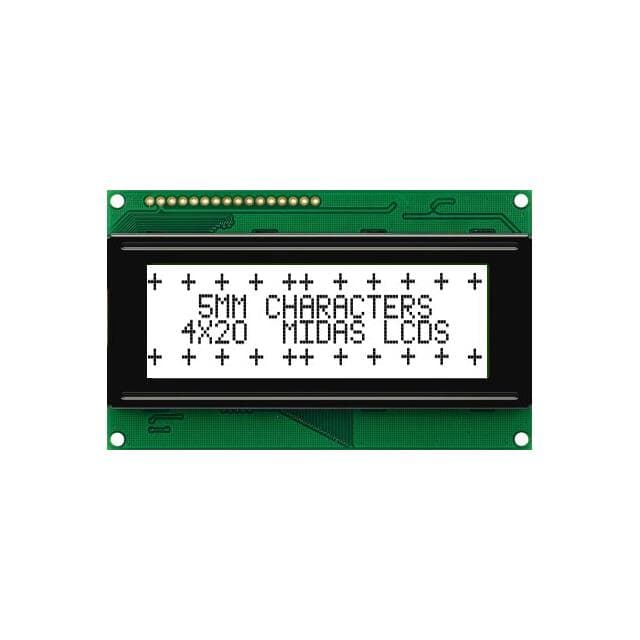

MC42005A6W-FPTLW-V2 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN19 sourced attributes1 source document

Midas Displays · exact orderable part

MC42005A6W-FPTLW-V2

4X20 CHARACTER CHIP-ON-BOARD LCD

Backlight
LED - White
Background Color
White
Character Format
5 x 8 Dots
Controller Type
ST7066U
Character Size
4.75mm H x 2.95mm W
Display Format
4 x 20
Original manufacturerCommercial terms confirmed per lot
ManufacturerMidas Displays
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue
ParameterValue
BacklightLED - White [1]
Background ColorWhite [1]
Character Format5 x 8 Dots [1]
Controller TypeST7066U [1]
Character Size4.75mm H x 2.95mm W [1]
Display Format4 x 20 [1]
Dot Size0.55mm W x 0.55mm H [1]
Display ModeTransflective [1]
InterfaceParallel [1]
Display TypeFSTN - Film Super-Twisted Nematic [1]
MfrMidas Displays [1]
Number of Characters1 [1]
Operating Temperature-20°C~70°C [1]
Outline L x W x H98.00mm x 60.00mm x 14.00mm [1]
Product StatusActive [1]
SeriesMC42005A [1]
Viewing Area76.00mm L x 25.20mm W [1]
Voltage - Supply4.5V ~ 5.5V [1]
Text ColorBlack [1]
Specification references[1]Midas Displays MC42005A6W-FPTLW-V2 vendor product record ↗
