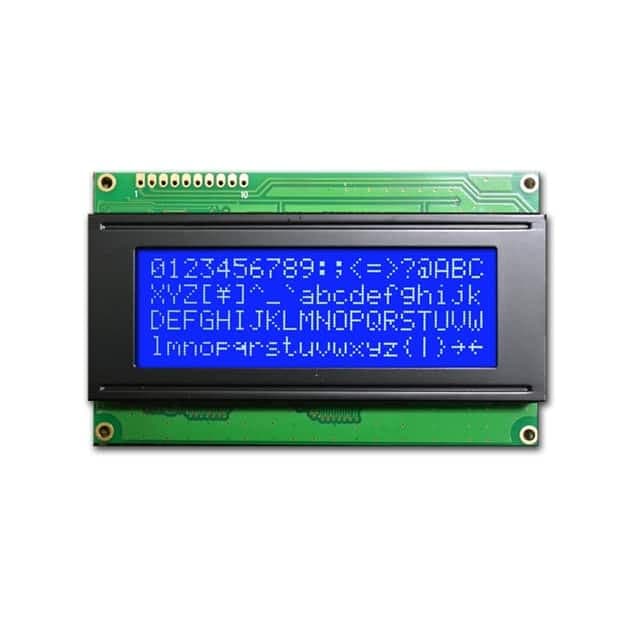

MC42005A6W-BNMLW-V2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN19 sourced attributes1 source document

Midas Displays · exact orderable part

MC42005A6W-BNMLW-V2

4X20 CHARACTER CHIP-ON-BOARD LCD

Backlight: LED - White
Background Color: Blue
Character Format: 5 x 8 Dots
Controller Type: ST7066U
Character Size: 4.75mm H x 2.95mm W
Display Format: 4 x 20

Original manufacturerCommercial terms confirmed per lot

ManufacturerMidas Displays

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue

MC42005A6W-BNMLW-V2 technical parameters
Parameter	Value
Backlight	LED - White [1]
Background Color	Blue [1]
Character Format	5 x 8 Dots [1]
Controller Type	ST7066U [1]
Character Size	4.75mm H x 2.95mm W [1]
Display Format	4 x 20 [1]
Dot Size	0.55mm W x 0.55mm H [1]
Display Mode	Transmissive [1]
Interface	Parallel [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Midas Displays [1]
Number of Characters	1 [1]
Operating Temperature	-20°C~70°C [1]
Outline L x W x H	98.00mm x 60.00mm x 14.00mm [1]
Product Status	Active [1]
Series	MC42005A [1]
Viewing Area	76.00mm L x 26.00mm W [1]
Voltage - Supply	5V [1]
Text Color	White [1]

Specification references[1]Midas Displays MC42005A6W-BNMLW-V2 vendor product record ↗
