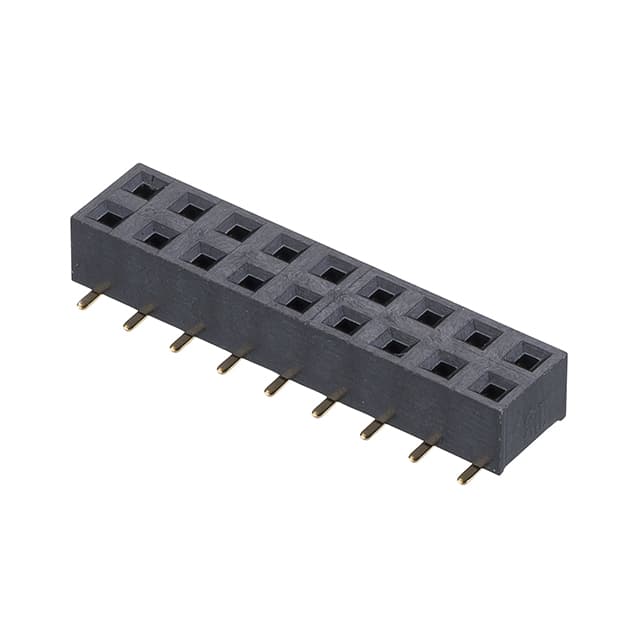

Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Applications | General Purpose [1] |
| Base Product Number | M20-781 [1] |
| Connector Type | Receptacle, Bottom or Top Entry [1] |
| Contact Finish - Mating | Gold [1] |
| Contact Finish - Post | Gold [1] |
| Contact Finish Thickness - Mating | 0.59µin (0.015µm) [1] |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) [1] |
| Contact Material | Phosphor Bronze [1] |
| Contact Shape | Square [1] |
| Contact Type | Female Socket [1] |
| Current Rating (Amps) | 3A [1] |
| Fastening Type | Push-Pull [1] |
| Features | Board Guide [1] |
| Insulation Color | Black [1] |
| Insulation Height | 0.140" (3.56mm) [1] |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled [1] |
| Material Flammability Rating | UL94 V-0 [1] |
| Mfr | Harwin Inc. [1] |
| Mounting Type | Surface Mount [1] |
| Number of Positions | 18 [1] |
| Number of Positions Loaded | All [1] |
| Number of Rows | 2 [1] |
| Operating Temperature | -40°C ~ 105°C [1] |
| Pitch - Mating | 0.100" (2.54mm) [1] |
| Product Status | Active [1] |
| Row Spacing - Mating | 0.100" (2.54mm) [1] |
| Series | M20 [1] |
| Style | Board to Board [1] |
| Termination | Solder [1] |
Specification references[1]Harwin Inc. M20-7810945 vendor product record ↗
