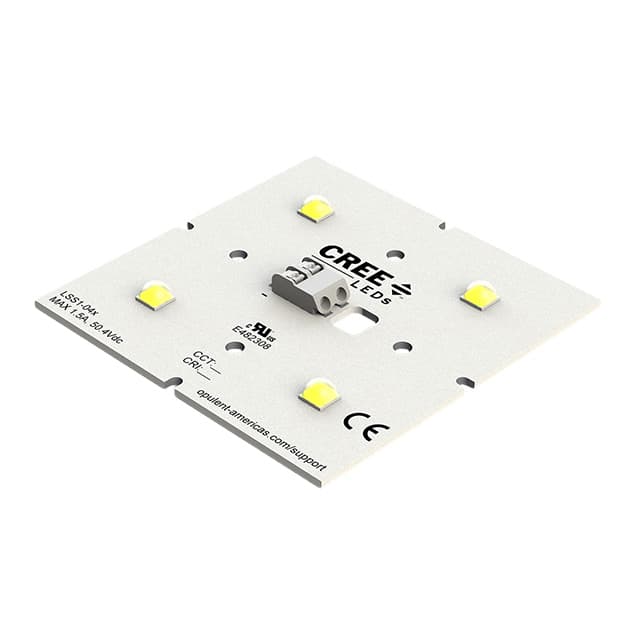

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

New Energy · exact orderable part

LSS1-04C22-5080-00

Name: LSS1-04C22-5080-00
Brand: New Energy

LED MOD XHP50.2 COOL WH SQ 5000K

Original manufacturerCommercial terms confirmed per lot

ManufacturerNew Energy

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

18 normalized values · 1 validated source

LSS1-04C22-5080-00 technical parameters
Parameter	Value
Base Product Number	LSS1-04 [1]
Color	White, Cool [1]
CCT (K)	5000K 5-Step MacAdam Ellipse [1]
Configuration	Square [1]
CRI (Color Rendering Index)	80 [1]
Current - Test	700mA [1]
Luminous Flux @ Current/Temperature	4480lm [1]
Manufacturer	New Energy [1]
Current - Max	1.5A [1]
Part Status	Active [1]
Series	XHP50.2 [1]
Lens Type	Domed [1]
Height	1.52mm [1]
Temperature - Test	85°C [1]
Lumens/Watt @ Current - Test	143 lm/W [1]
Type	LED Module [1]
Voltage - Forward (Vf) (Typ)	44.8V [1]
Size / Dimension	170.18mm L x 32.99mm W [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

Related exact parts
