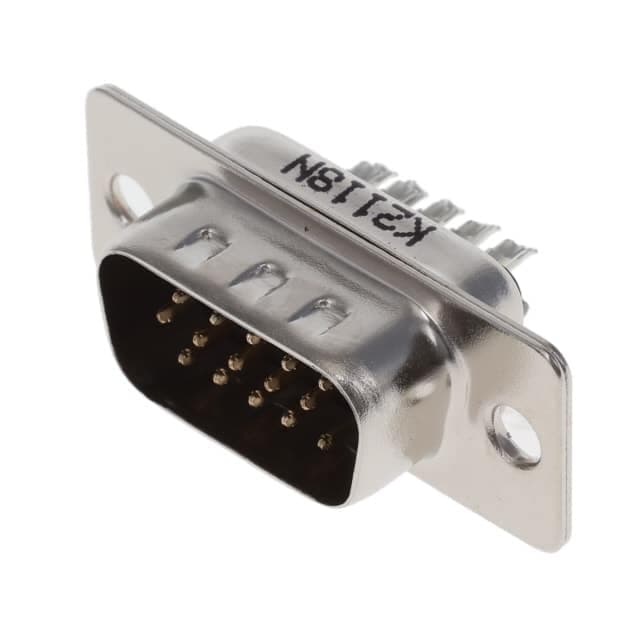

K86X-EA-15P representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN25 sourced attributes1 source document

Kycon, Inc. · exact orderable part

K86X-EA-15P

CONN D-SUB HD PLUG 15POS VERT

Base Product Number
K86X-EA
Color
Black
Connector Style
D-Sub, High Density
Connector Type
Plug, Male Pins
Contact Finish
Gold
Contact Finish Thickness
Flash
Original manufacturerCommercial terms confirmed per lot
ManufacturerKycon, Inc.
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

25 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberK86X-EA [1]
ColorBlack [1]
Connector StyleD-Sub, High Density [1]
Connector TypePlug, Male Pins [1]
Contact FinishGold [1]
Contact Finish ThicknessFlash [1]
Contact FormStamped [1]
Contact MaterialBrass [1]
Contact TypeSignal [1]
Current Rating (Amps)1.5A [1]
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled [1]
Flange FeatureHousing/Shell (Unthreaded) [1]
FeaturesGrounding Indents [1]
Material Flammability RatingUL94 V-0 [1]
MfrKycon, Inc. [1]
Mounting TypeThrough Hole [1]
Number of Positions15 [1]
Number of Rows3 [1]
Operating Temperature-55°C~105°C [1]
Product StatusActive [1]
SeriesK86X [1]
Shell Material, FinishSteel, Nickel Plated [1]
Shell Size, Connector Layout1 (DE, E) High Density [1]
TerminationSolder Cup [1]
Voltage Rating30VAC [1]
Specification references[1]Kycon, Inc. K86X-EA-15P vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerKycon, Inc.View brand page →CategoryD-Sub Connector AssembliesView category page →
