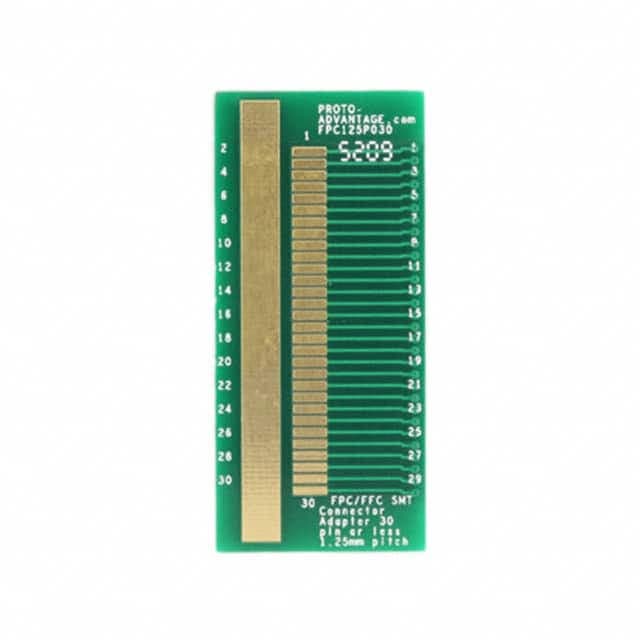

FPC125P030 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN11 sourced attributes1 source document

Chip Quik Inc. · exact orderable part

FPC125P030

FPC/FFC SMT CONNECTOR 1.25 MM PI

Base Product Number
FPC125
Material
FR4 Epoxy Glass
Board Thickness
0.062" (1.57mm) 1/16"
Mfr
Chip Quik Inc.
Series
Proto-Advantage
Number of Positions
30
Original manufacturerCommercial terms confirmed per lot
ManufacturerChip Quik Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberFPC125 [1]
MaterialFR4 Epoxy Glass [1]
Board Thickness0.062" (1.57mm) 1/16" [1]
MfrChip Quik Inc. [1]
SeriesProto-Advantage [1]
Number of Positions30 [1]
Package AcceptedFPC Connector [1]
Pitch0.049" (1.25mm) [1]
Product StatusActive [1]
Proto Board TypeSMD to DIP [1]
Size / Dimension0.900" x 1.950" (22.86mm x 49.53mm) [1]
Specification references[1]Chip Quik Inc. FPC125P030 vendor product record ↗
