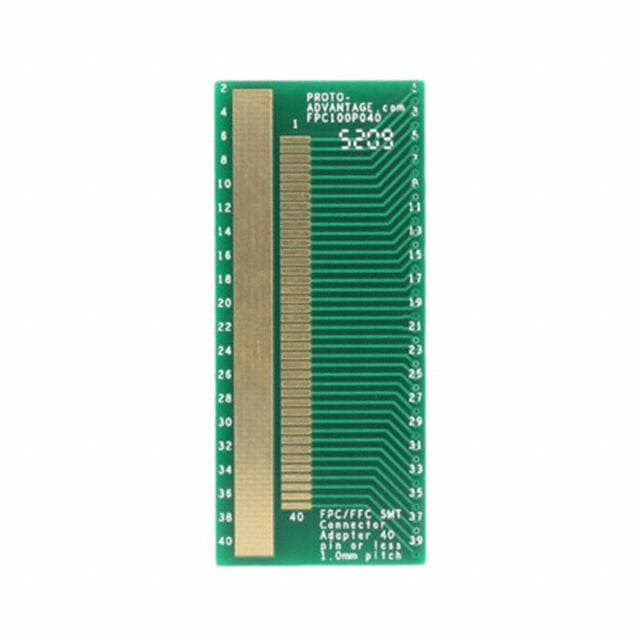

FPC100P040 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN11 sourced attributes1 source document

Chip Quik Inc. · exact orderable part

FPC100P040

FPC/FFC SMT CONNECTOR 1 MM PITCH

Base Product Number
FPC100
Material
FR4 Epoxy Glass
Board Thickness
0.062" (1.57mm) 1/16"
Mfr
Chip Quik Inc.
Series
Proto-Advantage
Number of Positions
40
Original manufacturerCommercial terms confirmed per lot
ManufacturerChip Quik Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberFPC100 [1]
MaterialFR4 Epoxy Glass [1]
Board Thickness0.062" (1.57mm) 1/16" [1]
MfrChip Quik Inc. [1]
SeriesProto-Advantage [1]
Number of Positions40 [1]
Package AcceptedFPC Connector [1]
Pitch0.039" (1.00mm) [1]
Product StatusActive [1]
Proto Board TypeSMD to DIP [1]
Size / Dimension0.900" x 2.050" (22.86mm x 52.07mm) [1]
Specification references[1]Chip Quik Inc. FPC100P040 vendor product record ↗
