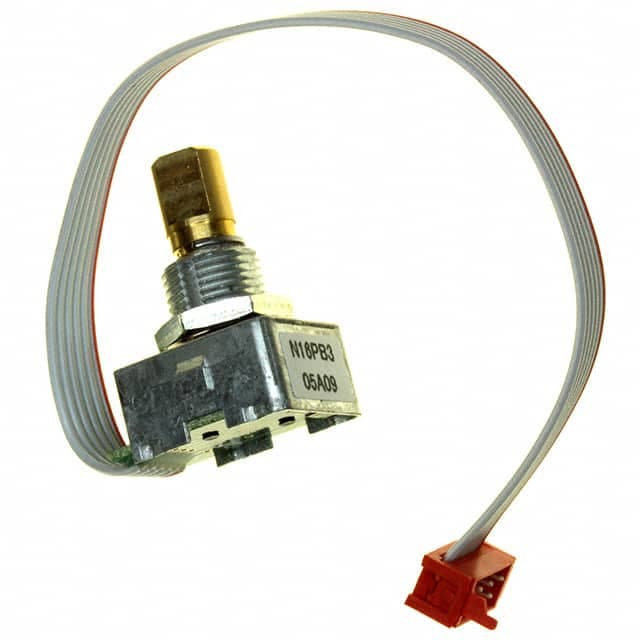

C14N16P-B3 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 3
Exact MPN15 sourced attributes1 source document

CUI Devices · exact orderable part

C14N16P-B3

ROTARY ENCODER OPTICAL 16PPR

Base Product Number
C14N16P
Actuator Type
1/4" Dia Flatted End
Product Status
Active
Built in Switch
Yes
Series
C14
Detent
No
Original manufacturerCommercial terms confirmed per lot
ManufacturerCUI Devices
Mounting typePanel Mount
PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberC14N16P [1]
Actuator Type1/4" Dia Flatted End [1]
MfrCUI Devices [1]
Product StatusActive [1]
Built in SwitchYes [1]
SeriesC14 [1]
DetentNo [1]
Encoder TypeOptical [1]
Mounting TypePanel Mount [1]
OrientationRight Angle [1]
Output TypeQuadrature (Incremental) [1]
Pulses per Revolution16 [1]
Rotational Life (Cycles Min)1M [1]
Termination StyleCable with Connector [1]
Voltage - Supply5V [1]
Specification references[1]CUI Devices C14N16P-B3 vendor product record ↗
