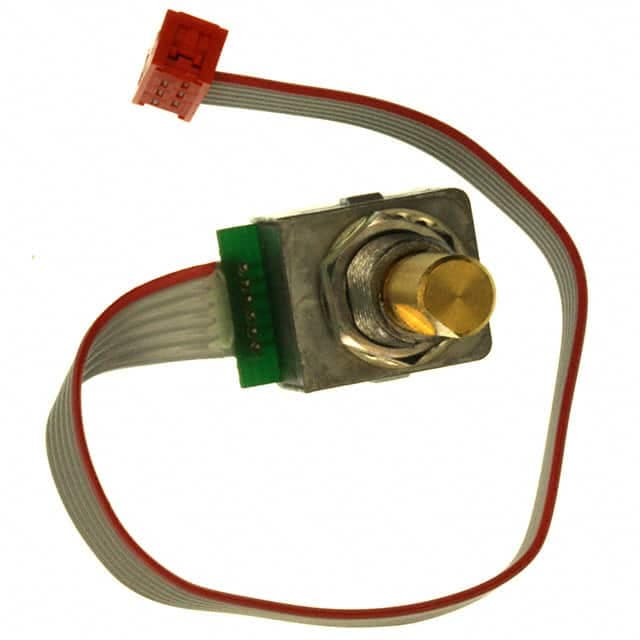

C14D16P-B3 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 3

Exact MPN15 sourced attributes1 source document

CUI Devices · exact orderable part

C14D16P-B3

ROTARY ENCODER OPTICAL 16PPR

Base Product Number: C14D16P
Actuator Type: 1/4" Dia Flatted End
Mfr: CUI Devices
Product Status: Active
Built in Switch: Yes
Series: C14

Original manufacturerCommercial terms confirmed per lot

ManufacturerCUI Devices

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue

C14D16P-B3 technical parameters
Parameter	Value
Base Product Number	C14D16P [1]
Actuator Type	1/4" Dia Flatted End [1]
Mfr	CUI Devices [1]
Product Status	Active [1]
Built in Switch	Yes [1]
Series	C14 [1]
Detent	Yes [1]
Encoder Type	Optical [1]
Mounting Type	Panel Mount [1]
Orientation	Right Angle [1]
Output Type	Quadrature (Incremental) [1]
Pulses per Revolution	16 [1]
Rotational Life (Cycles Min)	1M [1]
Termination Style	Cable with Connector [1]
Voltage - Supply	5V [1]

Specification references[1]CUI Devices C14D16P-B3 vendor product record ↗
