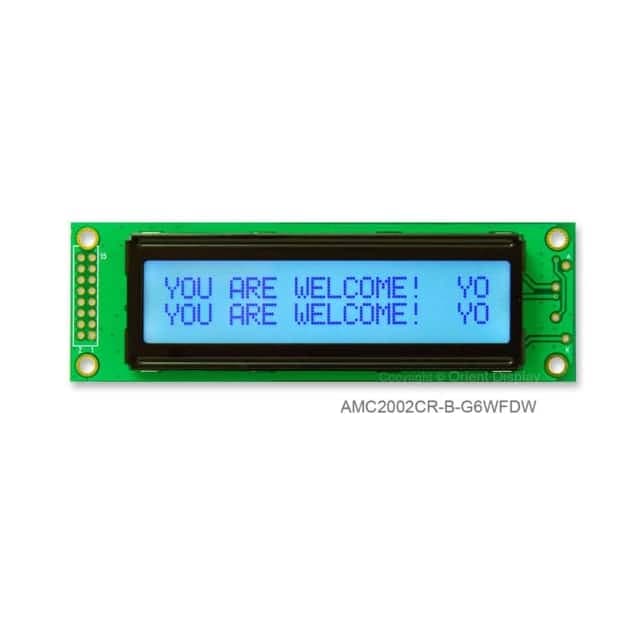

AMC2002CR-B-G6WFDW representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Orient Display · exact orderable part

AMC2002CR-B-G6WFDW

LCD COB CHAR 20X2 GRAY TRANSF

Backlight: LED - White
Background Color: Gray
Character Format: 5 x 8 Dots
Controller Type: S6A0069
Character Size: 5.55mm H x 3.20mm W
Display Format: 20 x 2

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrient Display

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

AMC2002CR-B-G6WFDW technical parameters
Parameter	Value
Backlight	LED - White [1]
Background Color	Gray [1]
Character Format	5 x 8 Dots [1]
Controller Type	S6A0069 [1]
Character Size	5.55mm H x 3.20mm W [1]
Display Format	20 x 2 [1]
Dot Size	0.60mm W x 0.65mm H [1]
Display Mode	Transflective [1]
Interface	Parallel, 8-Bit [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Orient Display [1]
Number of Characters	40 [1]
Operating Temperature	-20°C~70°C [1]
Outline L x W x H	116.00mm x 37.00mm x 14.50mm [1]
Product Status	Active [1]
Viewing Area	83.00mm L x 18.60mm W [1]
Voltage - Supply	4.5V ~ 5.5V [1]
Text Color	Blue [1]

Specification references[1]Orient Display AMC2002CR-B-G6WFDW vendor product record ↗
