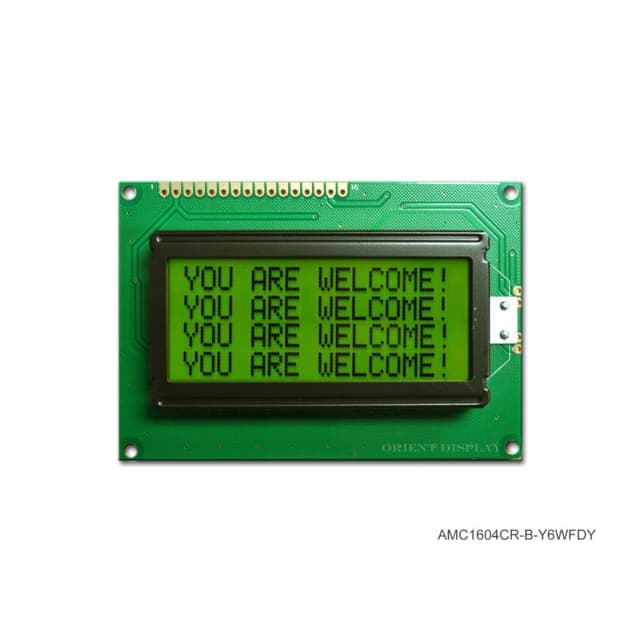

AMC1604CR-B-Y6WFDY representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Orient Display · exact orderable part

AMC1604CR-B-Y6WFDY

LCD COB CHAR 16X4 Y/G TRANSF

Backlight: LED - Yellow/Green
Background Color: Yellow/Green
Character Format: 5 x 8 Dots
Controller Type: AIP31066L-001
Character Size: 4.76mm H x 2.96mm W
Display Format: 16 x 4

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrient Display

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

AMC1604CR-B-Y6WFDY technical parameters
Parameter	Value
Backlight	LED - Yellow/Green [1]
Background Color	Yellow/Green [1]
Character Format	5 x 8 Dots [1]
Controller Type	AIP31066L-001 [1]
Character Size	4.76mm H x 2.96mm W [1]
Display Format	16 x 4 [1]
Dot Size	0.56mm W x 0.56mm H [1]
Display Mode	Transflective [1]
Interface	Parallel, 8-Bit [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	Orient Display [1]
Number of Characters	64 [1]
Operating Temperature	-20°C~70°C [1]
Outline L x W x H	87.00mm x 60.00mm x 14.50mm [1]
Product Status	Active [1]
Viewing Area	61.80mm L x 25.20mm W [1]
Voltage - Supply	4.5V ~ 5.5V [1]
Text Color	Dark Blue [1]

Specification references[1]Orient Display AMC1604CR-B-Y6WFDY vendor product record ↗
