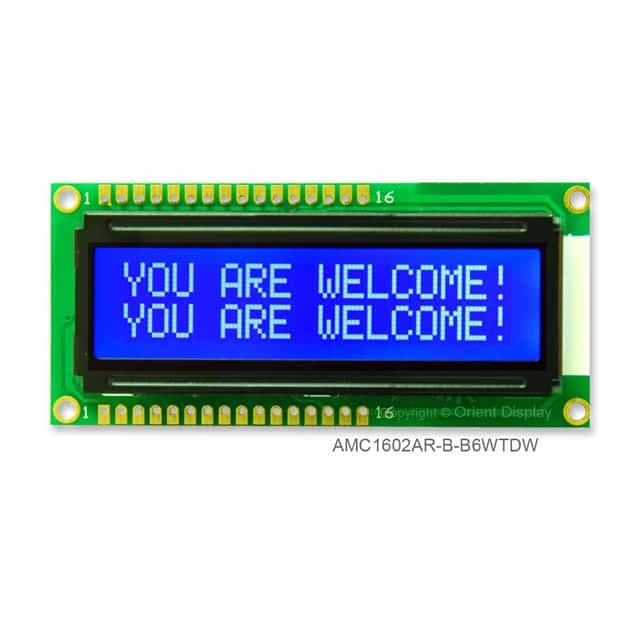

AMC1602AR-B-B6WTDW representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

Orient Display · exact orderable part

AMC1602AR-B-B6WTDW

16X2 CHARACTER STN NEGATIVE BLUE

Backlight
LED - White
Background Color
Blue
Character Format
5 x 8 Dots
Controller Type
S6A0069
Character Size
2.95mm H x 5.55mm W
Display Format
16 x 2
Original manufacturerCommercial terms confirmed per lot
ManufacturerOrient Display
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
BacklightLED - White [1]
Background ColorBlue [1]
Character Format5 x 8 Dots [1]
Controller TypeS6A0069 [1]
Character Size2.95mm H x 5.55mm W [1]
Display Format16 x 2 [1]
Dot Size0.55mm W x 0.65mm H [1]
Display ModeTransmissive [1]
InterfaceParallel [1]
Display TypeSTN - Super-Twisted Nematic [1]
MfrOrient Display [1]
Number of Characters32 [1]
Operating Temperature-20°C~70°C [1]
Outline L x W x H80.00mm x 36.00mm x 14.00mm [1]
Product StatusActive [1]
Viewing Area64.50mm L x 15.50mm W [1]
Voltage - Supply5V [1]
Text ColorWhite [1]
Specification references[1]Orient Display AMC1602AR-B-B6WTDW vendor product record ↗
