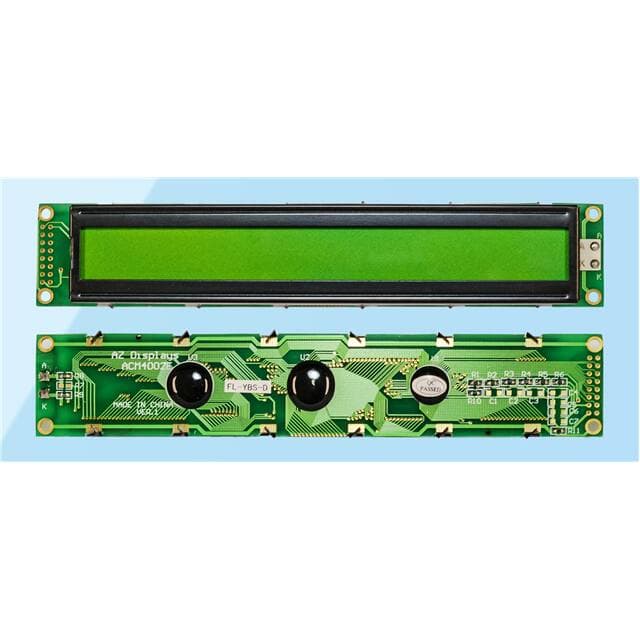

ACM4002E-ML-YBS-D representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN15 sourced attributes1 source document

AZ Displays · exact orderable part

ACM4002E-ML-YBS-D

40X2 CHARACTER LCD TRANSMISSIVE

Backlight
LED
Character Format
5 x 8 Dots
Controller Type
KS0066
Character Size
5.55mm H x 3.20mm W
Display Format
20 x 4
Dot Size
0.60mm W x 0.65mm H
Original manufacturerCommercial terms confirmed per lot
ManufacturerAZ Displays
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
BacklightLED [1]
Character Format5 x 8 Dots [1]
Controller TypeKS0066 [1]
Character Size5.55mm H x 3.20mm W [1]
Display Format20 x 4 [1]
Dot Size0.60mm W x 0.65mm H [1]
Display ModeTransmissive [1]
Display TypeSTN - Super-Twisted Nematic, TN - Twisted Nematic [1]
MfrAZ Displays [1]
Operating Temperature-20°C~70°C [1]
Outline L x W x H182.00mm x 33.50mm x 14.50mm [1]
Product StatusActive [1]
SeriesACM4002E [1]
Viewing Area154.50mm L x 16.50mm W [1]
Voltage - Supply2.7V ~ 5.5V [1]
Specification references[1]AZ Displays ACM4002E-ML-YBS-D vendor product record ↗
