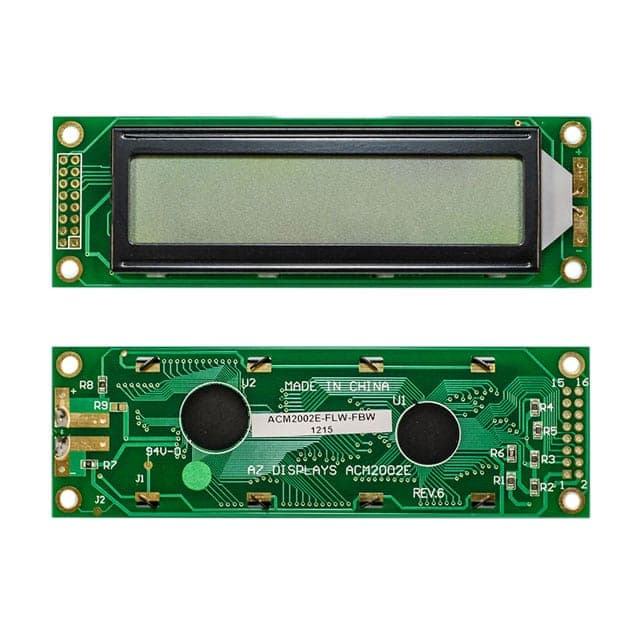

ACM2002E-FL-YBW-R representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN15 sourced attributes1 source document

AZ Displays · exact orderable part

ACM2002E-FL-YBW-R

20 X 2 CHARACTER MONOCHROME

Backlight
LED - Yellow/Green
Character Format
5 x 8 Dots
Controller Type
ST7066U-0A
Character Size
5.55mm H x 3.20mm W
Display Format
20 x 2
Dot Size
0.60mm W x 0.65mm H
Original manufacturerCommercial terms confirmed per lot
ManufacturerAZ Displays
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
BacklightLED - Yellow/Green [1]
Character Format5 x 8 Dots [1]
Controller TypeST7066U-0A [1]
Character Size5.55mm H x 3.20mm W [1]
Display Format20 x 2 [1]
Dot Size0.60mm W x 0.65mm H [1]
Display ModeTransflective [1]
Display TypeSTN - Super-Twisted Nematic [1]
MfrAZ Displays [1]
Number of Characters40 [1]
Operating Temperature-20°C~70°C [1]
Outline L x W x H116.00mm x 37.00mm x 14.00mm [1]
Product StatusActive [1]
Viewing Area83.00mm L x 18.60mm W [1]
Voltage - Supply4.8V ~ 5.2V [1]
Specification references[1]AZ Displays ACM2002E-FL-YBW-R vendor product record ↗
