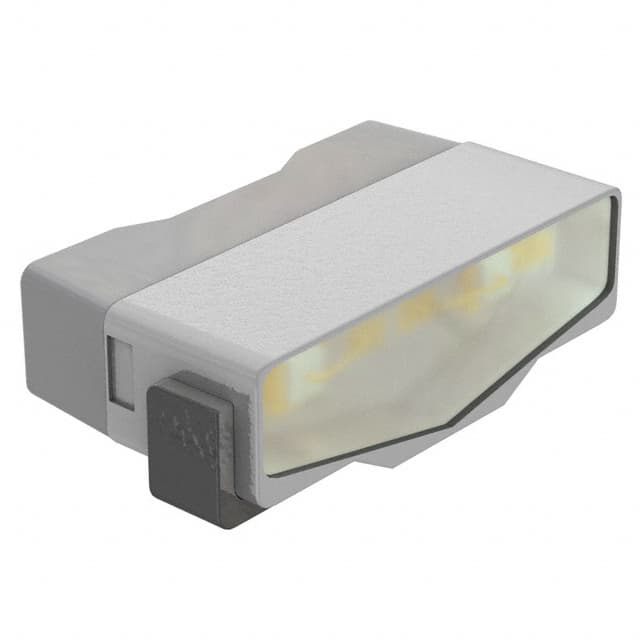

AA2810AZGS representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

Kingbright · exact orderable part

AA2810AZGS

LED GREEN CLEAR SMD R/A

Base Product Number
AA2810
Color
Green
Configuration
Standard
Current - Test
20mA
Height (Max)
0.80mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerKingbright
Package / case2-SMD, J-Lead
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberAA2810 [1]
ColorGreen [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)0.80mm [1]
Lens ColorColorless [1]
Lens Size2.30mm x 0.57mm [1]
Lens StyleRectangle with Flat Top [1]
Lens TransparencyClear [1]
MfrKingbright [1]
Millicandela Rating700mcd [1]
Mounting TypeSurface Mount, Right Angle [1]
Product StatusActive [1]
Size / Dimension2.80mm L x 1.20mm W [1]
Viewing Angle110° [1]
Voltage - Forward (Vf) (Typ)3.3V [1]
Wavelength - Dominant525nm [1]
Wavelength - Peak515nm [1]
Specification references[1]Kingbright AA2810AZGS vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerKingbrightView brand page →CategoryLED Indication - DiscreteView category page →

Related exact parts

Other published variants

AA1608CGSKAA1608SESKAA1608SYSKAA2214CGSKAA2214SESKAA2214SYSKAA2214ZGSKAA3020ASGCAA3020ASRC
