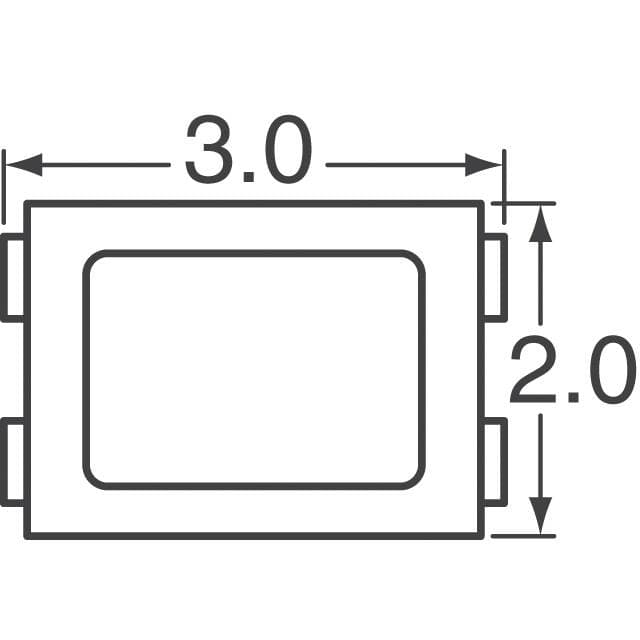

AA3020ASRC representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Kingbright · exact orderable part

AA3020ASRC

LED RED CLEAR SMD

Color
Red
Configuration
Standard
Current - Test
20mA
Height (Max)
1.65mm
Lens Color
Colorless
Lens Size
2.00mm x 1.40mm
Original manufacturerCommercial terms confirmed per lot
ManufacturerKingbright
Package / case2-SMD, J-Lead
Mounting typeunknown
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
ColorRed [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)1.65mm [1]
Lens ColorColorless [1]
Lens Size2.00mm x 1.40mm [1]
Lens StyleRectangle with Flat Top [1]
Lens TransparencyClear [1]
MfrKingbright [1]
Millicandela Rating120mcd [1]
Mounting TypeSurface Mount [1]
Product StatusObsolete [1]
Size / Dimension2.70mm L x 2.00mm W [1]
Viewing Angle90° [1]
Voltage - Forward (Vf) (Typ)1.85V [1]
Wavelength - Dominant640nm [1]
Wavelength - Peak660nm [1]
Specification references[1]Kingbright AA3020ASRC vendor product record ↗
