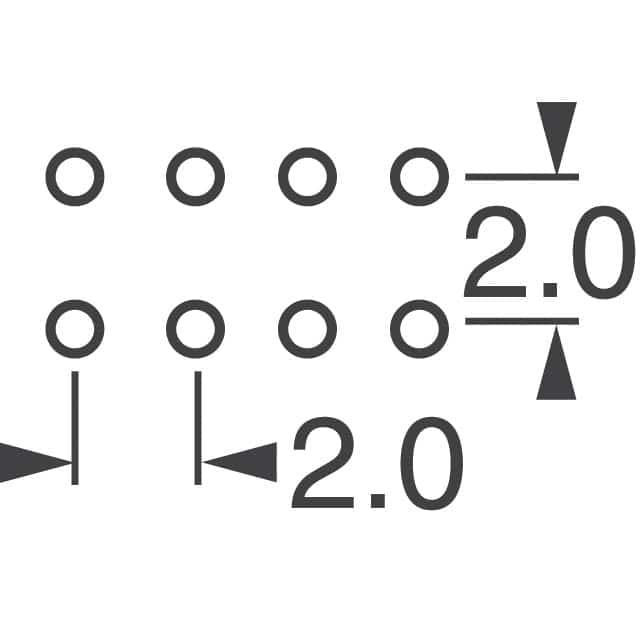

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN27 sourced attributes2 source documents

NorComp Inc. · exact orderable part

25641601RP2

Name: 25641601RP2
Brand: NorComp Inc.

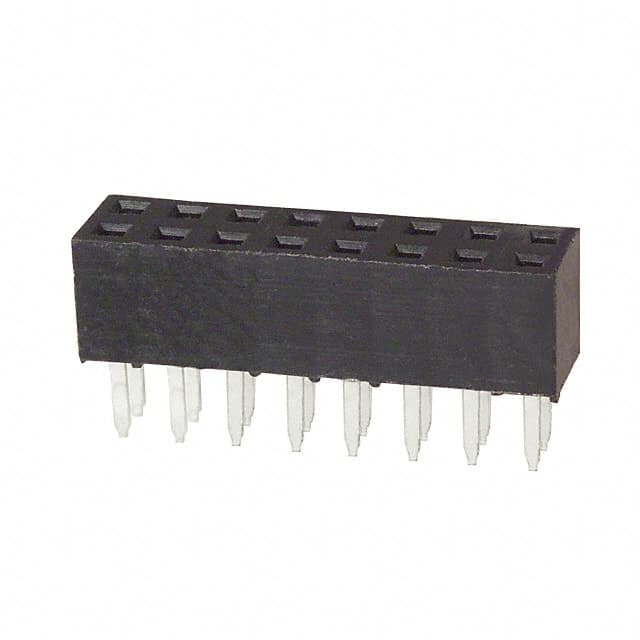

CONN RCPT 16POS 0.079 GOLD PCB

Original manufacturerCommercial terms confirmed per lot

ManufacturerNorComp Inc.

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

27 normalized values · 2 validated sources

25641601RP2 technical parameters
Parameter	Value
Base Product Number	2564160 [2]
Connector Type	Receptacle [2]
Contact Finish - Mating	Gold [2]
Contact Finish - Post	Tin [2]
Contact Finish Thickness - Mating	Flash [2]
Contact Length - Post	0.118" (3.00mm) [2]
Contact Finish Thickness - Post	100.0µin (2.54µm) [2]
Contact Material	Phosphor Bronze [2]
Contact Shape	Square [2]
Contact Type	Female Socket [2]
Current Rating (Amps)	1A [2]
Fastening Type	Push-Pull [2]
Insulation Color	Black [2]
Insulation Height	0.177" (4.50mm) [2]
Insulation Material	Thermoplastic, Glass Filled [2]
Material Flammability Rating	UL94 V-0 [2]
Mfr	NorComp Inc. [2]
Mounting Type	Through Hole [2]
Number of Positions	16 [2]
Number of Positions Loaded	All [2]
Number of Rows	2 [2]
Operating Temperature	-40°C~105°C [2]
Pitch - Mating	0.079" (2.00mm) [2]
Product Status	Active [2]
Row Spacing - Mating	0.079" (2.00mm) [2]
Series	2564 [2]
Termination	Solder [2]
