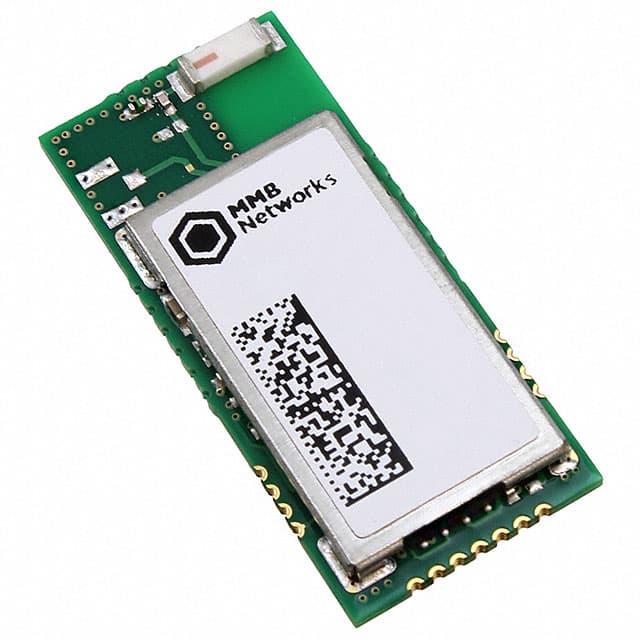

Z357PA20-SMT-P-TC-N representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

MMB Networks · exact orderable part

Z357PA20-SMT-P-TC-N

RF TXRX MODULE 802.15.4 CHIP SMD

Antenna Type: Integrated, Chip
Current - Receiving: 32mA
Base Product Number: Z357PA20
Current - Transmitting: 175mA
DigiKey Programmable: Not Verified
Data Rate: 921.6kbps

Original manufacturerCommercial terms confirmed per lot

ManufacturerMMB Networks

Package / caseModule

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue

Z357PA20-SMT-P-TC-N technical parameters
Parameter	Value
Antenna Type	Integrated, Chip [1]
Current - Receiving	32mA [1]
Base Product Number	Z357PA20 [1]
Current - Transmitting	175mA [1]
DigiKey Programmable	Not Verified [1]
Data Rate	921.6kbps [1]
Frequency	2.4GHz [1]
Memory Size	192kB Flash, 12kB RAM [1]
Mfr	MMB Networks [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C ~ 85°C [1]
Power - Output	20dBm [1]
Product Status	Not For New Designs [1]
Protocol	Zigbee® [1]
RF Family/Standard	802.15.4 [1]
Sensitivity	-106dBm [1]
Serial Interfaces	SPI, UART [1]
Voltage - Supply	2.7V ~ 3.6V [1]
Series	RapidConnect™ [1]
Utilized IC / Part	EM357 [1]

Specification references[1]MMB Networks Z357PA20-SMT-P-TC-N vendor product record ↗
