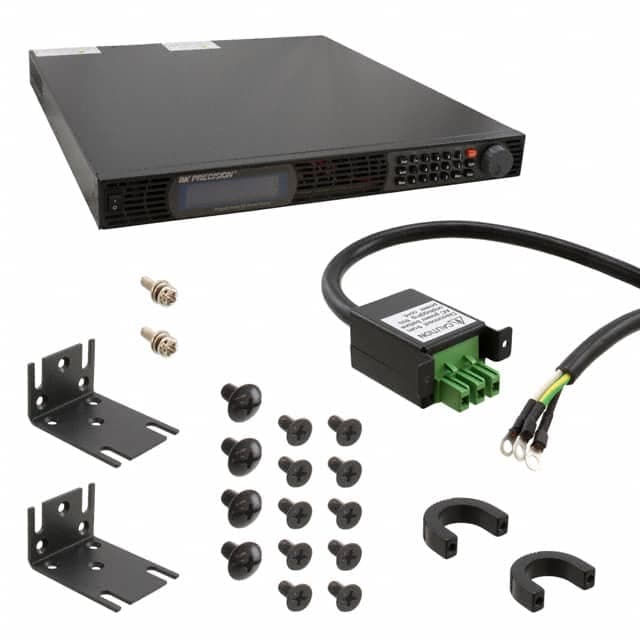

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

B&K Precision · exact orderable part

XLN30052-GL

Name: XLN30052-GL
Brand: B&K Precision

PWR SUPP PROGRAM DC 5-300V 1560W

Original manufacturerCommercial terms confirmed per lot

ManufacturerB&K Precision

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

20 normalized values · 1 validated source

XLN30052-GL technical parameters
Parameter	Value
Accuracy - Voltmeter; Ammeter	0.05% + 150mV, 0.1% + 15.6mA [1]
Current - Output	0.02 ~ 5.2A [1]
Current Regulation - Line	10.4mA [1]
Current Regulation - Load	20.8mA [1]
Display Type	LCD [1]
Features	GPIB, LAN Interface, Memory, Programmable, RS485, USB Interface [1]
Mfr	B&K Precision [1]
Number of Characters	4 (2) [1]
Number of Outputs	1 [1]
Power (Watts)	1560W [1]
Product Status	Active [1]
Ripple	25mV rms, 150mV p-p [1]
Series	XLN [1]
Size / Dimension	18.110" L x 16.535" W x 1.740" H (460.00mm x 420.00mm x 44.20mm) [1]
Type	Bench (AC to DC) [1]
Voltage - Output	5 ~ 300VDC [1]
Voltage - Supply	100 ~ 240VAC [1]
Voltage Regulation - Line	32mV [1]
Voltage Regulation - Load	32mV [1]
Weight	20 lbs (9.1 kg) [1]
