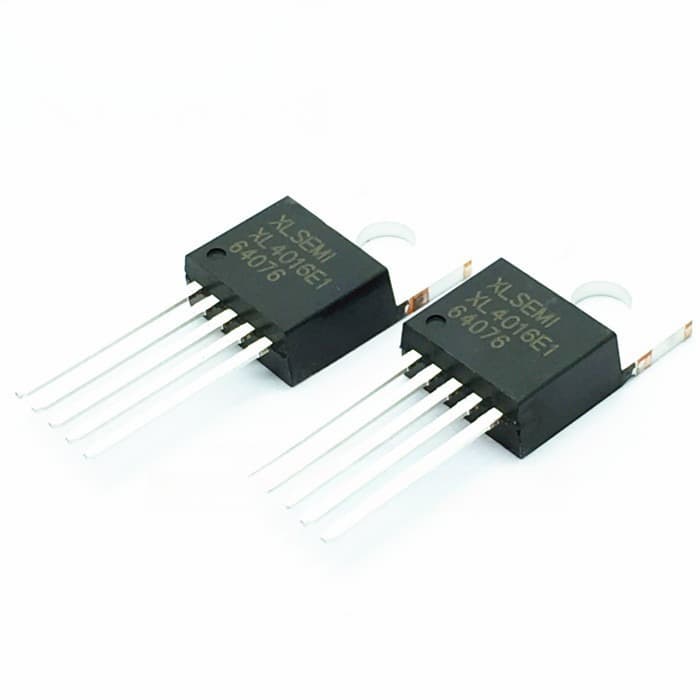

Peer-marketplace product photograph of XL4016E1 in TO-220-5L
Exact-part technical visualProduct reference1 of 2
Exact MPN23 sourced attributes1 manufacturer document

XLSEMI · exact orderable part

XL4016E1

XL4016E1 buck-converter IC in TO220-5L; headline 12 A capability remains conditional on the documented circuit and thermal design.

Minimum Input Voltage
8 V
Maximum Input Voltage
36 V
Output Current
12 A
Minimum Adjustable Output Voltage
1.25 V
Maximum Adjustable Output Voltage
32 V
Typical Switching Frequency
180 kHz
China-origin manufacturerCommercial terms confirmed per lot
ManufacturerXLSEMI
Package / caseTO220-5L
Mounting typethrough hole
Packing50/tube; 1000/box

Technical parameters

Technical specifications

23 normalized values · 1 manufacturer source

Report a data issue
ParameterValue
TopologyBuck [1]
Minimum Input Voltage8 V [1]
Maximum Input Voltage36 V [1]
Output Current12 A [1]
Package / CaseTO220-5L [1]
Minimum Adjustable Output Voltage1.25 V [1]
Maximum Adjustable Output Voltage32 V [1]
Typical Switching Frequency180 kHz [1]
Short-Circuit Operating Frequency48 kHz [1]
Typical Feedback Voltage1.25 V [1]
Typical Quiescent Current2.1 mA [1]
Typical Switch Current Limit14 A [1]
Maximum Duty Cycle100 % [1]
Typical Power-Switch On Resistance40 mΩ [1]
Maximum Reported Efficiency96 % [1]
Minimum Dropout0.3 V [1]
Operating Junction Temperature-40 to 125 °C [1]
Junction-to-Ambient Thermal Resistance30 °C/W [1]
Minimum ESD Rating (HBM)2000 V [1]
Pin Count5 [1]
Thermal ShutdownYes [1]
Current LimitYes [1]
Output Short ProtectionYes [1]
Specification references[1]XLSEMI XL4016 Datasheet, Rev 1.6 ↗
