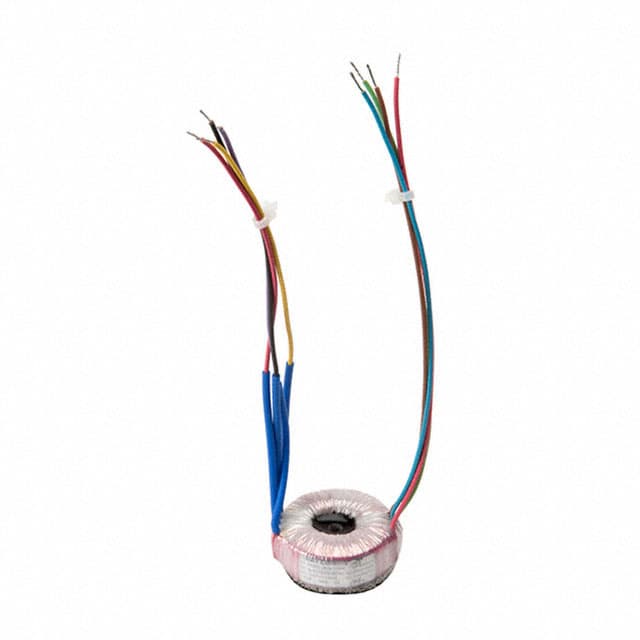

XF-10239 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Amgis, LLC · exact orderable part

XF-10239

PWR XFMR TORO 25VA CHAS MT

Voltage - Primary: 115V, 230V
Voltage - Secondary (Full Load): Parallel 15V, Series 30V
Current - Output (Max): Parallel 833mA, Series 416mA
Power - Max: 25VA
Voltage - Isolation: 4000Vrms
Primary Winding(s): Dual
Secondary Winding(s): Dual
Center Tap: No
Mounting Type: Chassis Mount

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmgis, LLC

Mounting typeChassis Mount

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

XF-10239 technical parameters
Parameter	Value
Center Tap	No [1]
Current - Output (Max)	Parallel 833mA, Series 416mA [1]
Height - Seated (Max)	34.50mm [1]
Mfr	Amgis, LLC [1]
Mounting Type	Chassis Mount [1]
Power - Max	25VA [1]
Primary Winding(s)	Dual [1]
Product Status	Active [1]
Secondary Winding(s)	Dual [1]
Termination Style	Wire Leads [1]
Type	Toroidal [1]
Size / Dimension	58.00mm Dia [1]
Voltage - Primary	115V, 230V [1]
Voltage - Secondary (Full Load)	Parallel 15V, Series 30V [1]
Weight	0.856 lb (388.28 g) [1]
Voltage - Isolation	4000Vrms [1]

Specification references[1]Amgis, LLC XF-10239 vendor product record ↗
