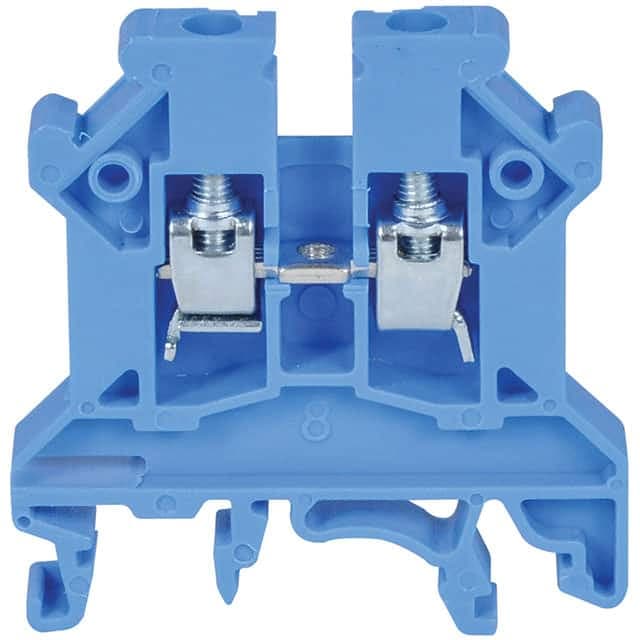

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

c3controls · exact orderable part

WTB2-W4-BE

Name: WTB2-W4-BE
Brand: c3controls

30A FEED THRU BLUE 6MM

Original manufacturerCommercial terms confirmed per lot

Manufacturerc3controls

PackingBox

Technical parameters

Technical specifications

17 normalized values · 1 validated source

WTB2-W4-BE technical parameters
Parameter	Value
Color	Blue [1]
Current - IEC	32 A [1]
Current - UL	35 A [1]
Material Flammability Rating	UL94 V-0 [1]
Mfr	c3controls [1]
Number of Levels	1 [1]
Number of Positions	2 [1]
Product Status	Active [1]
Series	TB [1]
Stripping Length	9mm [1]
Terminal - Width	6.0mm [1]
Termination Style	Screw [1]
Type	Feed Through [1]
Voltage - IEC	750V [1]
Voltage - UL	600V [1]
Wire Gauge or Range - AWG	10-22 AWG [1]
Wire Gauge or Range - mm²	0.5-6mm² [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

Related exact parts

Browse exact MPNs and compare their specifications. These links do not imply compatibility or interchangeability.
