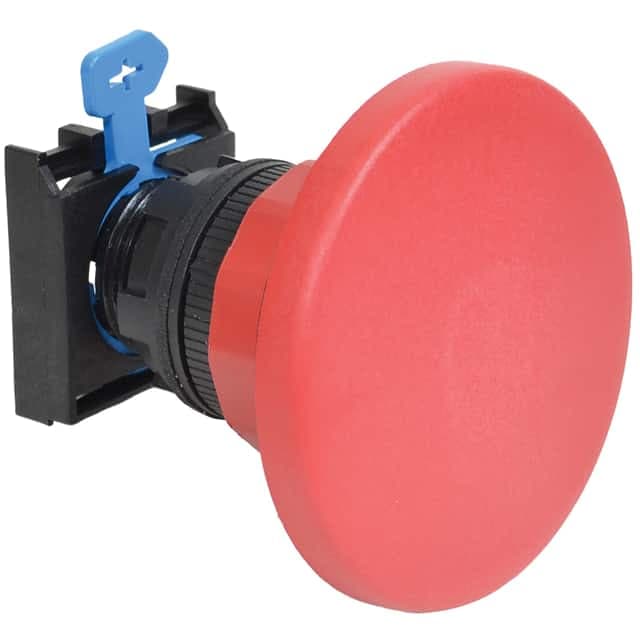

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

c3controls · exact orderable part

W22PP-MR-01

Name: W22PP-MR-01
Brand: c3controls

22MM PP, 40MM MUSH CAP RED, 1 NC

Original manufacturerCommercial terms confirmed per lot

Manufacturerc3controls

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

15 normalized values · 1 validated source

W22PP-MR-01 technical parameters
Parameter	Value
Base Product Number	W22PP [1]
Circuit	SPST-NC [1]
Current Rating (Amps)	10A (AC), 2.5A (DC) [1]
Ingress Protection	IP66 - Dust Tight, Water Resistant [1]
Mfr	c3controls [1]
Mounting Type	Panel Mount, Rear [1]
Operating Temperature	-40°C~55°C [1]
Panel Cutout Dimensions	Circular - 22.50mm Dia [1]
Product Status	Active [1]
Reset Operation	Pull [1]
Series	22 [1]
Switch Function	On-Off [1]
Termination Style	Screw Terminal [1]
Voltage Rating - AC	72 V [1]
Voltage Rating - DC	28 V [1]
