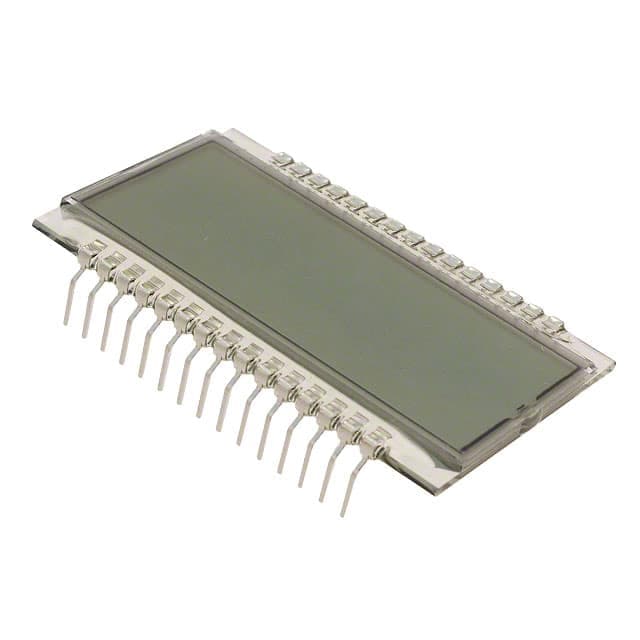

VIM-503-DP-FC-S-HV representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes1 source document

Varitronix · exact orderable part

VIM-503-DP-FC-S-HV

LCD MOD 4.5DIG 4.5X1 TRANSFLECTV

Base Product Number: VIM-503
Character Format: 7-Segment
Character Size: 10.16mm H x 5.10mm W
Display Format: 4.5 x 1
Display Mode: Transflective
Display Type: TN - Twisted Nematic

Original manufacturerCommercial terms confirmed per lot

ManufacturerVaritronix

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

VIM-503-DP-FC-S-HV technical parameters
Parameter	Value
Base Product Number	VIM-503 [1]
Character Format	7-Segment [1]
Character Size	10.16mm H x 5.10mm W [1]
Display Format	4.5 x 1 [1]
Display Mode	Transflective [1]
Display Type	TN - Twisted Nematic [1]
Mfr	Varitronix [1]
Number of Characters	4.5 [1]
Operating Temperature	-10°C~60°C [1]
Outline L x W x H	50.80mm x 30.48mm x 2.80mm [1]
Product Status	Active [1]
Series	VIM-503 [1]
Viewing Area	45.72mm L x 17.78mm W [1]
Voltage - Supply	3.9V ~ 7.5V [1]

Specification references[1]Varitronix VIM-503-DP-FC-S-HV vendor product record ↗
