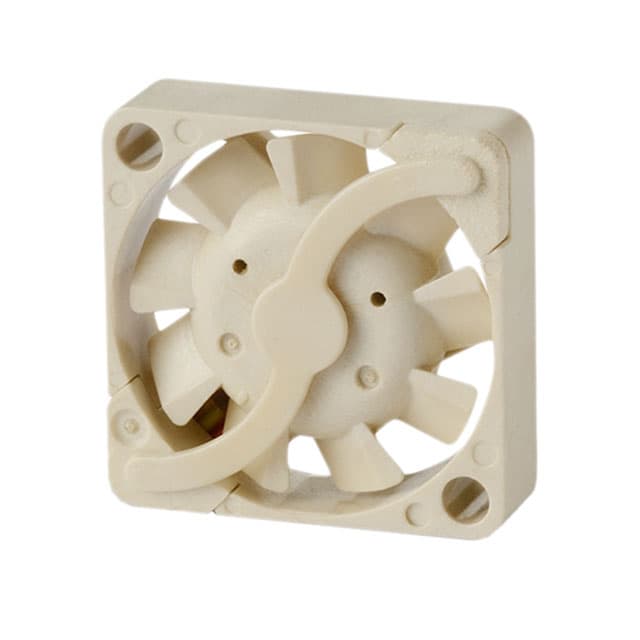

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN25 sourced attributes2 source documents

Sunon Fans · exact orderable part

UF3C3-700B

Name: UF3C3-700B
Brand: Sunon Fans

FAN AXIAL 12X3MM VAPO 3VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerSunon Fans

PackingTray

Technical parameters

Technical specifications

25 normalized values · 2 validated sources

UF3C3-700B technical parameters
Parameter	Value
Air Flow	0.218 CFM (0.006m³/min) [2]
Approval Agency	CE [2]
Bearing Type	Vapo-Bearing™ [2]
Base Product Number	UF3C3 [2]
Current Rating (Amps)	0.097A [2]
Fan Type	Tubeaxial [2]
Features	Auto Restart [2]
Ingress Protection	IP58 - Dust Protected, Waterproof [2]
Material - Blade	Liquid Crystal Polymer (LCP) [2]
RoHS (DigiKey record)	ROHS3 Compliant [2]
Material - Frame	Liquid Crystal Polymer (LCP) [2]
Mfr	Sunon Fans [2]
Noise	28.3dB(A) [2]
Operating Temperature	14 ~ 158°F (-10 ~ 70°C) [2]
Power (Watts)	300 mW [2]
Part Status	Active [2]
RPM	16500 RPM [2]
Series	MagLev® UF, Mighty Mini [2]
Size / Dimension	Square - 12mm L x 12mm H [2]
Static Pressure	0.076 in H2O (18.9 Pa) [2]
Termination	2 Wire Leads [2]
Voltage - Rated	3VDC [2]
Voltage Range	2 ~ 3.5VDC [2]
Weight	0.002 lb (0.91 g) [2]
Width	3.00mm [2]
