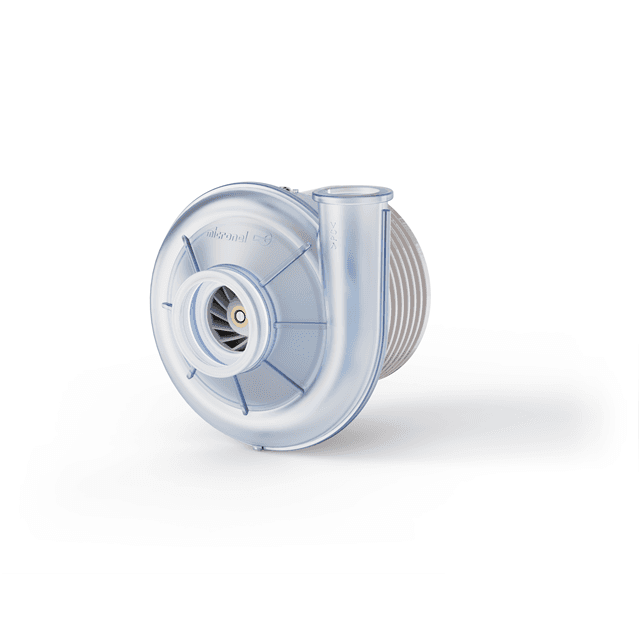

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

Micronel USA · exact orderable part

U71MX-024KX-4

Name: U71MX-024KX-4
Brand: Micronel USA

FAN BLOWER 74.1X59MM 24VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerMicronel USA

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

U71MX-024KX-4 technical parameters
Parameter	Value
Air Flow	13.9 CFM (0.389m³/min) [1]
Approval Agency	CE [1]
Bearing Type	Ball [1]
Current Rating (Amps)	1.30A [1]
Fan Type	Blower [1]
Features	Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP) [1]
Material - Blade	Polyamide (PA6), Nylon 6 [1]
Material - Frame	Polycarbonate (PC) [1]
Mfr	Micronel USA [1]
Noise	47.0dB(A) [1]
Operating Temperature	-4 ~ 122°F (-20 ~ 50°C) [1]
Power (Watts)	25 W [1]
Product Status	Active [1]
RPM	28900 RPM [1]
Size / Dimension	Rectangular/Rounded - 74.1mm L x 69.4mm H [1]
Static Pressure	16.46 in H2O (4100.0 Pa) [1]
Termination	4 Wire Leads [1]
Voltage - Rated	24VDC [1]
Voltage Range	15 ~ 26VDC [1]
Width	59.00mm [1]
