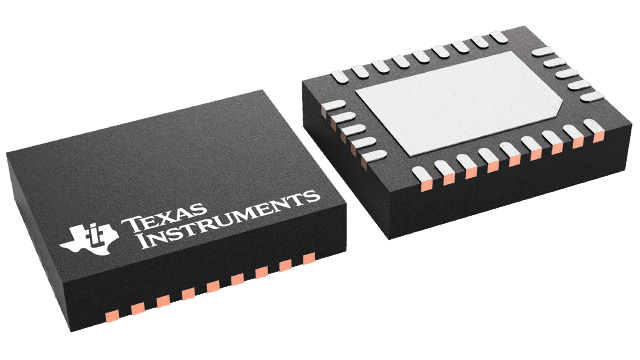

TPS53513RVER representative VQFN-CLIP (RVE) package image from Texas Instruments
Representative package visualPackage outline
Exact MPN23 sourced attributes2 manufacturer documents

Texas Instruments · exact orderable part

TPS53513RVER

TPS53513RVER by Texas Instruments: source-linked specifications, VQFN-CLIP (RVE) package details, verified manufacturer package image and RFQ.

Topology
Buck
Iout (max)
8 A
Vin (min)
1.5 V
Vin (max)
18 V
Vout (min)
0.6 V
Vout (max)
5.5 V
Original manufacturerCommercial terms confirmed per lot
ManufacturerTexas Instruments
Package / caseVQFN-CLIP (RVE)
Mounting typesurface mount
PackingLARGE T&R
Temperature grade-40 °C to 85 °C

Technical parameters

Technical specifications

23 normalized values · 2 manufacturer sources

Report a data issue
ParameterValue
Product ratingCatalog [2]
REACHAffected [2]
Lead finishNiPdAu [2]
Ball materialSn [2]
Moisture sensitivity level2 [2]
Peak reflow temperature260 °C [2]
MSL floor life1 YEAR [2]
PackageVQFN-CLIP (RVE) [2]
Pin count28 pins [2]
Operating temperature minimum-40 °C [2]
Operating temperature maximum85 °C [2]
Package quantity3000 units [2]
CarrierLARGE T&R [2]
TopologyBuck [1]
Iout (max)8 A [1]
Vin (max)18 V [1]
Vin (min)1.5 V [1]
Vout (max)5.5 V [1]
Vout (min)0.6 V [1]
FeaturesEnable, Light-load efficiency, Output discharge, Power good, Prebias startup, Synchronous rectification [1]
Control modeD-CAP3 [1]
Iq (typ)0.00135 A [1]
Duty cycle (max)80 % [1]
Specification references[1]Official TI family parametric table for TPS53513RVER ↗[2]Official TI exact orderable record for TPS53513RVER ↗

Product overview

TPS53513RVER at a glance

TPS53513RVER is the exact orderable Texas Instruments part represented by this synchronous buck converter record. The page combines exact packaging details with the linked TI family parametric table; verify current commercial terms through RFQ.

Key features

Verified device capabilities

  • Integrated 13.8-mΩ and 5.9-mΩ MOSFETs With 8-A Continuous Output Current
  • Supports All Ceramic Output Capacitors
  • Reference Voltage 600 mV ±0.5% Tolerance

Applications

Where the device is used

  • Point-of-Load Solutions for Data Center App Implementing VR13.HC Vccin Spec (Rev. A)

Ordering information

Exact code and packing

TPS53513RVER is documented in VQFN-CLIP (RVE), with 28 pins, supplied as LARGE T&R, with a documented package quantity of 3000 units.

Design notes

Use the rating in context

Topology: Buck. Confirm this documented rating against the full operating conditions and design margin.

Iout (max): 8 A. Confirm this documented rating against the full operating conditions and design margin.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

01

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

02

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

03

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

04

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about TPS53513RVER

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What is the exact orderable part number?

The evidence-bound orderable MPN is TPS53513RVER.

What package is documented for TPS53513RVER?

TPS53513RVER is documented in the VQFN-CLIP (RVE) package.

What operating temperature range is documented?

The documented operating temperature range is -40 °C to 85 °C.

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerTexas InstrumentsView brand page →CategorySynchronous buck converterView category page →Part familyTPS53513Compare exact variants →

Ready to source

Request TPS53513RVER by quantity

Send the exact MPN, quantity and any date-code, packing or documentation requirements. You can also add more lines or upload a BOM.
