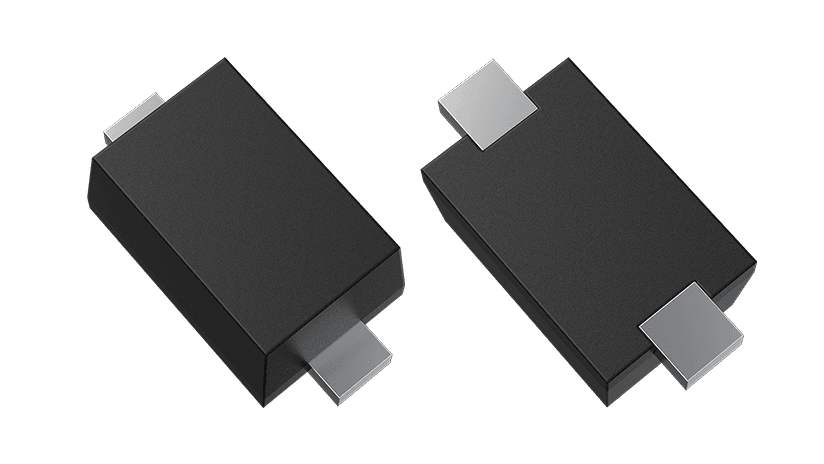

Toshiba ESC SOD-523 package reference for 1N4148WT,H3F

Representative package visualProduct reference1 of 2

Exact MPN13 sourced attributes1 manufacturer document

Toshiba Electronic Devices & Storage · exact orderable part

1N4148WT,H3F

Toshiba switching diode with 100 V reverse voltage, 250 mA average rectified current and SOD-523 package.

Reverse Voltage: 100 V
Forward Current: 0.25 A
Reverse Recovery Time: 3 ns
Package / Case: SOD-523
Non-Repetitive Peak Reverse Voltage: 100 V
Peak Forward Current: 0.5 A

Original manufacturerCommercial terms confirmed per lot

ManufacturerToshiba Electronic Devices & Storage

Package / caseSOD-523 (ESC)

Mounting typesurface mount

Lifecycleactive

Packing4000/reel

Technical parameters

Technical specifications

13 normalized values · 1 manufacturer source

Report a data issue

1N4148WT,H3F technical parameters
Parameter	Value
Reverse Voltage	100 V [1]
Forward Current	0.25 A [1]
Reverse Recovery Time	3 ns [1]
Package / Case	SOD-523 [1]
Non-Repetitive Peak Reverse Voltage	100 V [1]
Peak Forward Current	0.5 A [1]
1 s Surge Current	1 A [1]
Power Dissipation	150 mW [1]
Junction Temperature Range	-55 to 150 °C [1]
Maximum Forward Voltage at 1 mA	0.715 V [1]
Total Capacitance	0.5 pF [1]
Approximate Package Weight	0.0014 g [1]
Terminal Count	2 [1]

Specification references[1]Toshiba 1N4148WT Datasheet, Rev 1.0.A, 2026-04-07 ↗

Product overview

1N4148WT,H3F at a glance

Toshiba Electronic Devices & Storage 1N4148WT,H3F is an exact orderable switching diodes device in SOD-523 (ESC). The reviewed technical record lists reverse voltage of 100 V and forward current of 0.25 A.

Key features

Verified device capabilities

Reverse Voltage: 100 V under the cited manufacturer conditions.
Forward Current: 0.25 A under the cited manufacturer conditions.
Reverse Recovery Time: 3 ns under the cited manufacturer conditions.
Package / Case: SOD-523 under the cited manufacturer conditions.
Non-Repetitive Peak Reverse Voltage: 100 V under the cited manufacturer conditions.

Applications

Where the device is used

Electronic designs whose requirements match the documented reverse voltage, forward current, reverse recovery time.

Ordering information

Exact code and packing

1N4148WT,H3F identifies the exact Toshiba Electronic Devices & Storage order code in SOD-523 (ESC) with 4000/reel packing recorded; current lot terms are confirmed in the quotation.

Design notes

Use the rating in context

Use the cited operating conditions for 1N4148WT,H3F; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about 1N4148WT,H3F

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What package does 1N4148WT,H3F use?

1N4148WT,H3F is recorded in SOD-523 (ESC). Confirm the complete suffix and packing in the quotation.

What is the documented reverse voltage?

The cited manufacturer record lists 100 V. Apply the source's test and operating conditions.

How should the forward current be interpreted?

The normalized catalog value is 0.25 A. The linked evidence controls its exact conditions and revision.

Does this page prove current 1N4148WT,H3F stock?

No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.

Can 1N4148WT,H3F be replaced by a similar part without review?

No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
