Texas Instruments · exact orderable part
TI synchronous boost converter with 10 A headline switch-current capability; RHLR reel code.
Technical parameters
| Parameter | Value |
|---|---|
| Topology | Synchronous boost [1] |
| Minimum Input Voltage | 2.7 V [1] |
| Maximum Input Voltage | 12 V [1] |
| Package / Case | VQFN-20 (RHL) [1] |
| Minimum Adjustable Output Voltage | 4.5 V [1] |
| Maximum Adjustable Output Voltage | 12.6 V [1] |
| Switch Current Limit | 11.9 A [1] |
| Maximum Switching Frequency | 2200 kHz [1] |
| Operating Junction Temperature | -40 to 125 °C [1] |
| Pin Count | 20 [1] |
| Thermal Shutdown | Yes [1] |
| Current Limit | Yes [1] |
Product overview
The reviewed record identifies TPS61088RHLR as an exact Texas Instruments dc-dc converters order code in VQFN-20 (RHL), 3.5 × 4.5 mm. Key selection points include topology of Synchronous boost and minimum input voltage of 2.7 V.
Key features
Applications
Ordering information
TPS61088RHLR identifies the exact Texas Instruments order code in VQFN-20 (RHL), 3.5 × 4.5 mm. Packing record: 3,000 units/large tape-and-reel. Current lot terms are confirmed in the quotation.
3,000 units/large tape-and-reel
Design notes
Use the cited operating conditions for TPS61088RHLR; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

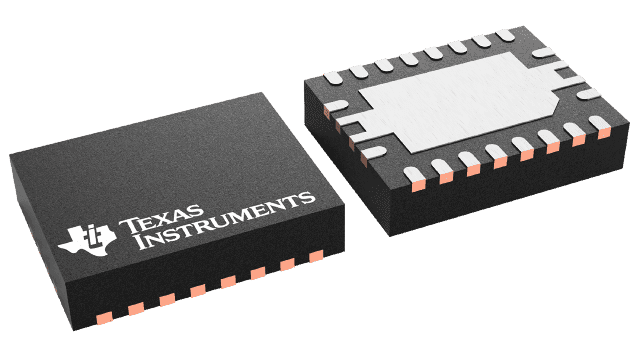

The displayed package image is representative and does not prove body marking, date code or shipment lot.
10 A is headline switch-current capability, not guaranteed continuous output current. The PFM-mode peak switch-current limit is 11.9 A typical with RILIM = 100 kΩ and VCC = 6 V. Switching frequency is adjustable up to 2.2 MHz.
Quotation and fulfillment
Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.
Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.
Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.
Label, marking, packing and traceability requirements can be specified before shipment.
Shipping method, Incoterm and available payment route are agreed in the commercial offer.
Technical and ordering FAQ
Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.
TPS61088RHLR is recorded in VQFN-20 (RHL), 3.5 × 4.5 mm. Confirm the complete suffix and packing in the quotation.
The cited manufacturer record lists Synchronous boost. Apply the source's test and operating conditions.
The normalized catalog value is 2.7 V. The linked evidence controls its exact conditions and revision.
No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.
No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.
Catalog relationships
This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
Ready to source
Send the exact MPN, quantity and any date-code, packing or documentation requirements. You can also add more lines or upload a BOM.
